One of a forecaster's first thoughts when confronted with the 300/200 mb chart is the jet stream. The jet stream is a high velocity river of air that flows completely around the Earth at the mid-latitudes. During winter, the jet core is located generally closer to 300 millibars since the air is more cold and dense in the vicinity of the jet stream during the cool season. The 200 millibar chart is used for the jet stream in the warm season but either chart in most instances will suffice. Many hot air balloonists have tried to ride this river of air around the world with not much success for most. The river of air is not continuous. Embedded within the jet stream are higher velocity jet streaks. Jet streaks are segments of faster wind speed within the jet stream.
At 300 mb, the air density is much smaller than near the surface. A 100-knot wind at the 200/300 millibar level does not feel as strong as a 100 knot wind at the surface. Even though the density is smaller, these air currents have the power to drive the movement of storm systems and build troughs and ridges.
One jet streak can turn a beautiful Monday into a severe storm Tuesday, as we will see in an example later. Troughs and ridges are not only carved by warm air and cold air advection but also by the high momentum air of jet streaks. A significant jet streak has winds over 100 knots. Look at the 300 mb chart in this section labeled "Time 1". A jet streak exists from Colorado to Montana. The highest wind speeds in the jet streak (aka jet core, jet surge) are 130 knots (150 miles per hour) in southern Wyoming.
Parcels within the jet streak are diving to the southeast. The air's momentum forces a trough to develop across the Central US. In "Time 2", the chart from 12 hours later, the jet streak has moved further to the southeast and the associated trough is becoming more amplified. At "Time 3" the jet streak has turned the corner and is in the base of the trough. The trough is at maximum amplification. The trough will now move to the east and eventually to the northeast. It is difficult to determine the four quadrants of a jet streak when one "turns the corner". Divergence and rising motion are strongest to the north of the jet axis, such as in Tennessee during highly curved jet streaks.
RULE OF THUMB: If a jet streak exists on the left side of a trough and winds are stronger to the left of the trough (as it is in our example in "Time 1"), the trough will become more amplified with time and will dig in a southerly direction. If a jet streak exists on the right side of a trough and winds are stronger to the right of the trough, the trough will become less amplified with time and "lift out" in a northeasterly direction. If the winds are about the same on each side of the trough, it will stay at about the same amplification. This knowledge will make you a better forecaster! A jet streak progression is shown below
The jet stream is useful for the prediction of temperature. The jet stream divides colder air to the north from warmer air to the south. The transition between temperatures on each side of the jet is very abrupt. Heights are higher to the south of the jet and lower to the north. In the upper levels, this creates relatively high heights to the south of the jet and relatively low heights to the north. The Pressure Gradient Force flows from a southerly to northerly direction. However, the Coriolis force shifts the wind flow to the right of the path of motion. Therefore, the jet stream flows from the west to east. When a trough builds over a region it often indicates cooler temperatures due to cloudier weather and northerly winds. A ridge builds by low level (between the surface and 700-mb) warm air advection and upper level forcing (negative vorticity). Air in a ridge is sinking and is thus expanding and creating higher heights. Therefore, temperatures are warmer than normal in a ridge due to warmer temperatures and sunnier weather. This is especially true when a ridge occurs in high latitudes. Below is a diagram showing the development of the polar jet and the wind pattern the PGF and Coriolis produce.
Certain regions of jet streaks are more favorable for rising or sinking air. Where convergence occurs in the upper levels, sinking motion results. Where divergence (evacuation of mass) occurs in the upper levels, rising motion result. Convergence and divergence in a jet streak is caused by an imbalance of forces as a parcel accelerates into a jet streak then decelerates out of the jet streak. The depiction below shows the balance and imbalance of forces in a jet streak. Lets look at each of the 5 numbers and letters.
(1) Pressure Gradient Force and Coriolis are in balance. Wind is geostrophic (parallel to height contours)
(2) Parcel enters region of higher wind speed. This increases the Pressure gradient force at the same time the Coriolis has not been changed much. Wind will tend to flow toward the longest vector, which is the PGF. This causes convergence in the Left Rear Quad (sinking air at letter A) and divergence in the Right Rear Quad (rising air at letter D). The tropopause is just above jet stream level. Convergence at the jet stream level forces air to sink because the highly stable tropopause prevents air from rising.
(3) The Coriolis once again balances the Pressure Gradient Force.
(4) As a parcel leaves the jet streak it must decelerate. The Pressure Gradient Force weakens at the same time the Coriolis has not had time to adjust and decrease. This causes convergence in the Right Front Quad (sinking air at letter B) and divergence in the Left Front Quad (rising air at letter C).
(5) Pressure Gradient Force and Coriolis once again balance
This example has been for a jet streak in a zonal flow. A jet streak in a curved flow, such as the case when a jet streak is in the base of a trough, will have divergence and rising air to the north of the jet and convergence and sinking air to the south of the jet.
The jet stream is a powerful forecasting tool. Not that it can give exact highs/ lows/ and precipitation chances, but because it gives information such as when to expect the next storm system and whether temperatures will be above or below normal. It gives clues to how the upper levels will promote rising air or sinking air. It gives clues to the character of the next storm system. Jet streaks alone provide much information of how a trough or ridge will develop over the next couple of days.
WHAT TO LOOK FOR ON 300/250/200 chart:
(1) Jet stream
*The jet stream is a river of air with segments of higher speed winds embedded within the mean flow
*Areas North of jet stream tend to have cooler than normal temperatures especially in the mid-latitudes
*Areas South of jet stream tend to have warmer than normal temperatures, especially in higher latitudes
(2) Jet Streaks
*Rising air occurs in the right rear and left front quadrants of jets
*Sinking air occurs in the left rear and right front quadrants of jets
*Rising air occurs north of jet axis if jet is in a highly curved flow
*Winds over 120 miles per hour constitute a significant jet streak
*Upper level divergence enhances rising air, especially if warm air advection is occurring in lower levels of atmosphere
(3) General trough/ridge pattern
*Momentum of jet stream carves the trough ridge pattern. If the jet stream winds are greater on the LEFT side of a trough, the trough will become more amplified and move further south. If the jet stream winds are greater on the RIGHT side of a trough, the trough will become less amplified with time and move further north
The jet stream is a fragmented global wind flow that encircles the mid-latitudes in a wavelike pattern. Embedded within this global wind belt are jet streaks. A jet streak is a segment of the jet stream that has relatively high velocity winds. Other terms for a jet streak are a jet max and a jet surge. Jet streaks are caused by a large low-level temperature gradient, thus they are more intense in the cool season when the differential in temperature between the polar regions and tropical regions is largest. Jet streaks are analyzed near the 300-mb level.
It is a common error for beginning weather analysts to assume that the "entire" jet streak is moving at 160 knots. Think of a jet streak as an analogy to that of a thunderstorm. The thunderstorm moves at a certain speed (say 20 knots) while the winds within theupdraft and downdraft of the thunderstorm move at a much faster speed (say 60 knots). The same is true for a jet streak. The jet streak itself may be moving at 25 knots while the winds moving through the core of the jet streak move at 160 knots. The wind accelerates as the air approaches the jet core and decelerates once leaving it.

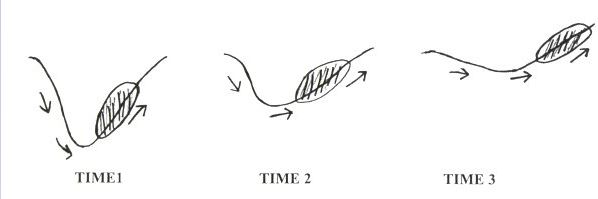

A jet streak moves within the trough-ridge pattern at the same time it influences the amplification or de-amplification of the trough-ridge pattern. The example below is that of a jet streak de-amplifying a trough. A strong jet streak on the right side of a trough will cause that trough to de-amplify (lift).
If a strong jet streak is on the left side of a trough, the trough will amplify (dig) as shown below.
A "jet streak" refers to a portion of the overall jet stream where winds along the jet core flow are stronger than in other areas along the jet stream. Entrance and exit regions of jet streaks are very important in terms of vertical motion, surface pressure systems, and organized precipitation given sufficient low-level moisture. Exit regions are where air parcels "exit" out of a jet streak and decelerate downstream from the jet core (Figs. 1&2). Entrance regions are where parcels "enter" into a jet streak and accelerate upstream from the jet core (Figs. 1&2).
Within the exit and entrance regions of jet streaks, air parcels moving at different speeds become out of balance with the existing thermal (temperature) gradient in these regions. Thus, the atmosphere attempts to restore (thermal wind) balance through vertical motion. The vertical motion is attained through ageostrophic winds. Thus, vertical motion is required within entrance and exit regions of jets.
In general, the more the "along-stream variation of the total wind" within an exit and entrance region (i.e., the faster the winds are accelerating within an entrance region or decelerating in an exit region per unit area along the flow (Fig. 2), the greater the vertical motion must be to restore thermal wind balance. The "cross-stream variation" (i.e., how quickly wind speeds change in a plane perpendicular to the jet axis) also is important in promoting vertical motion fields.
Within jet entrance and exit regions, the cross-stream component of the inertial advective part of the ageostrophic wind (i.e., the small arrows in Fig. 2) dictates the amount of divergence/convergence (and subsequent vertical motion) due to jet streak dynamics. Upper-level divergence (convergence) often is associated with upward (downward) vertical motion in the atmosphere.
However, even without the presence of a jet streak, curvature in the flow (i.e., upper-level troughs and ridges) results in divergence/convergence (and subsequent vertical motion) due to the along-stream component of the inertial advective part of the ageostrophic wind (Fig. 3). The stronger the curvature (i.e., the more amplified the jet pattern) and the shorter the wavelength between a trough and ridge axis aloft, the greater the upper-level divergence pattern will be due to the along-stream component of the ageostrophic wind.
Thus, upper-level divergence (of the ageostrophic wind) is caused by 1) jet streak entrance and exit regions, and 2) curvature and wavelength of the overall flow (troughs and ridges). It is very important to consider both these phenomena. It can be advantageous to look at the two components of the upper-level ageostrophic wind individually to assess which phenomena is most important to the production of vertical motion. These two components also explain 1) why 4-cell divergence patterns associated with straight jet streaks become 2-cell patterns for curved jets, and 2) why divergence values for curved jet streaks usually are stronger than that for straight jets (see below).
For STRAIGHT jet streaks, a 4-cell pattern of divergence aloft and vertical motion usually occurs (Fig. 4).
Within entrance regions, a thermally direct secondary circulation (Fig. 7) occurs associated with the ageostrophic wind. Warm air usually rises within the right entrance (right rear) region while cold air sinks in the left entrance region. To complete the circulation, horizontal ageostrophic winds often flow from warm-to-cold air at upper levels, and from cold-to-warm air at low levels. The circulation is on the order of approximately 400-600 km in horizontal extent.
Within exit regions, a thermally indirect secondary circulation (Fig. 8) occurs. Cold air rises in the left exit (left front) region and warm air sinks in the right exit region. The horizontal ageostrophic components include flow from warm-to-cold air at low levels and from cold-to-warm air at upper levels.
However, circulations associated with jet streaks are not "boxes" as shown in the examples above. Typically, vertical components are sloped along isentropic surfaces (Fig. 9). Thus, jet streak circulations and isentropic surfaces are not independent. In other words, in jet entrance and exit regions, enhanced upper-level divergence may lead to enhanced flow and vertical motion along isentropic surfaces.
For CURVED jet streaks, the "classic" 4-cell (Fig. 8a) vertical motion pattern can be more complicated, and usually becomes a 2-cell vertical motion pattern.
For a cyclonically-curved jet (Fig. 8b), maximum upper divergence values and subsequent ascent usually are found along and to the left of the core of the exit region, with descent along and to the left of the entrance region.
For an anticyclonically-curved jet (Fig. 8c), upper divergence and ascent are strongest along and to the right of the entrance region, with descent along and to the right of the exit region.
Ascent/descent values usually are greatest for cyclonically-curved jet streaks, second greatest for anticyclonically-curved jet streaks, and relatively weakest (but still significant) for straight jets assuming adequate along-stream variation in the wind (Fig. 8).
If varying temperature patterns (isotherms) are superimposed on jet streaks, different thermal advection pattern will result aloft. This can cause the location of maximum divergence and convergence to shift slightly with respect to the jet core.
Occasionally, the ascending branches of two separate jet streaks may be coincident over one location. This merger (coupling) is associated with the ascending branches of the direct circulation in the entrance region of one jet and the indirect circulation in the exit region of a second jet. This interaction maximizes upper-level divergence and vertical motion.
A "jet streak" refers to a portion of the overall jet stream where winds along the jet core flow are stronger than in other areas along the jet stream. The entrance (exit) region of a jet streak is where winds are accelerating into the back/upstream (decelerating out of the front/downstream) side of the streak. Within the entrance region of a jet streak, divergence (of the ageostrophic wind) usually occurs along and to the right of the jet core (i.e., right entrance region). The upper-level divergence causes pressure/height falls at the surface and/or lower-to-middle-levels underneath the upper divergence maximum. However, the upper divergence usually DOES NOT create a localized ascent maximum concentrated directly under the upper-level divergence field (i.e., the so-called "box" circulation is invalid; Fig. 1). Instead, Fig. 2 shows a plan view and Fig. 3 a vertical cross-section of more realistic processes that can happen in the atmosphere, as described below.
In a baroclinic system (systems that tilt with height), the lower-level pressure/height falls under the right entrance region/ divergence aloft cause a wind to be directed toward the pressure falls area (i.e., wind moves toward lower pressure). The wind moves toward the falls from all directions, including from the south where it is warmer and from the north where it is colder. This wind is the isallobaric component of the ageostrophic wind (small arrows in Fig. 2). South and/or east of the right entrance region/upper-level divergence/low-level pressure falls area, the southerly ageostrophic flow moving toward the falls area complements the environmental southerly flow already in place (southerly bold arrow labeled t1 in Fig. 2). Thus, an increase/ acceleration in the actual wind occurs near and south and/or east of the jet right entrance region (i.e., right rear quadrant of the jet streak).
This enhanced low-level flow (southerly bold arrow labeled t2 in Fig. 2 and LLJ in Fig. 3) then rises isentropically toward the upper-level divergence zone (large bold arrow in Fig. 3). Therefore, the area of strongest ascent (dashed-dotted circle in Fig. 2) may actually occur south and/or east of the maximum upper-level divergence area in baroclinic systems. In addition, as upper-level divergence increases with time, so will isentropic lift as the actual wind accelerates up the isentropic surface toward the pressure/height falls and enhanced divergence zone. In more "vertically stacked" systems, then the ascent maximum may be located closer/underneath the divergence maximum aloft.
