Introduction Balloon Preparation & Launch Post-Launch

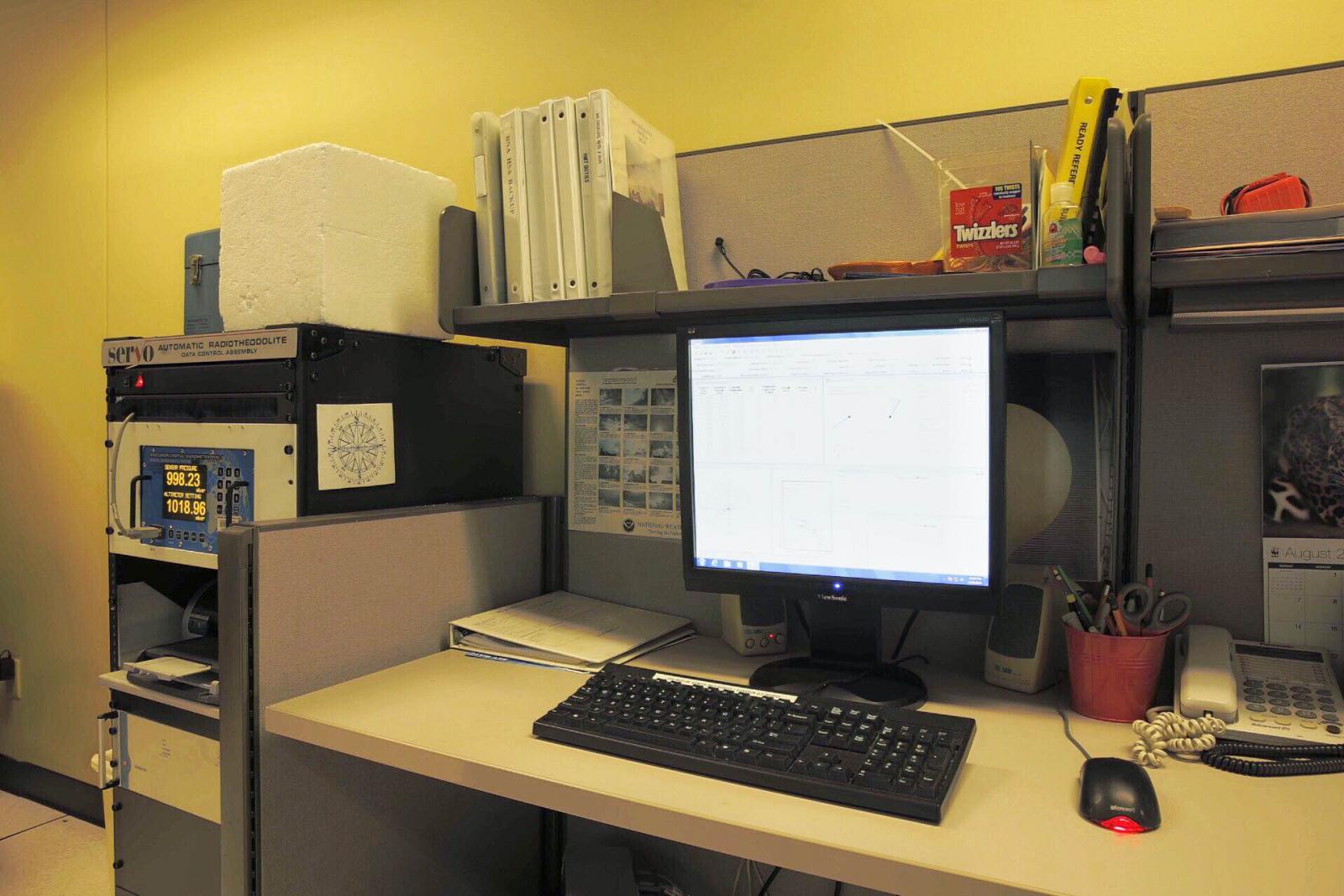

After the balloon has been launched, we need to go back inside to work the flight using the RWS software on the radiosonde workstation computer.  The incoming data must be monitored closely to ensure the data are of good quality and have no inaccuracies.  Minor corrections to the relative humidity, pressure, and temperature are typically applied in the first 30-45 seconds of the flight.  A few minutes after launch, we can usually allow the software to automatically track the radiosonde using the GPS signal.

Upper air workstion

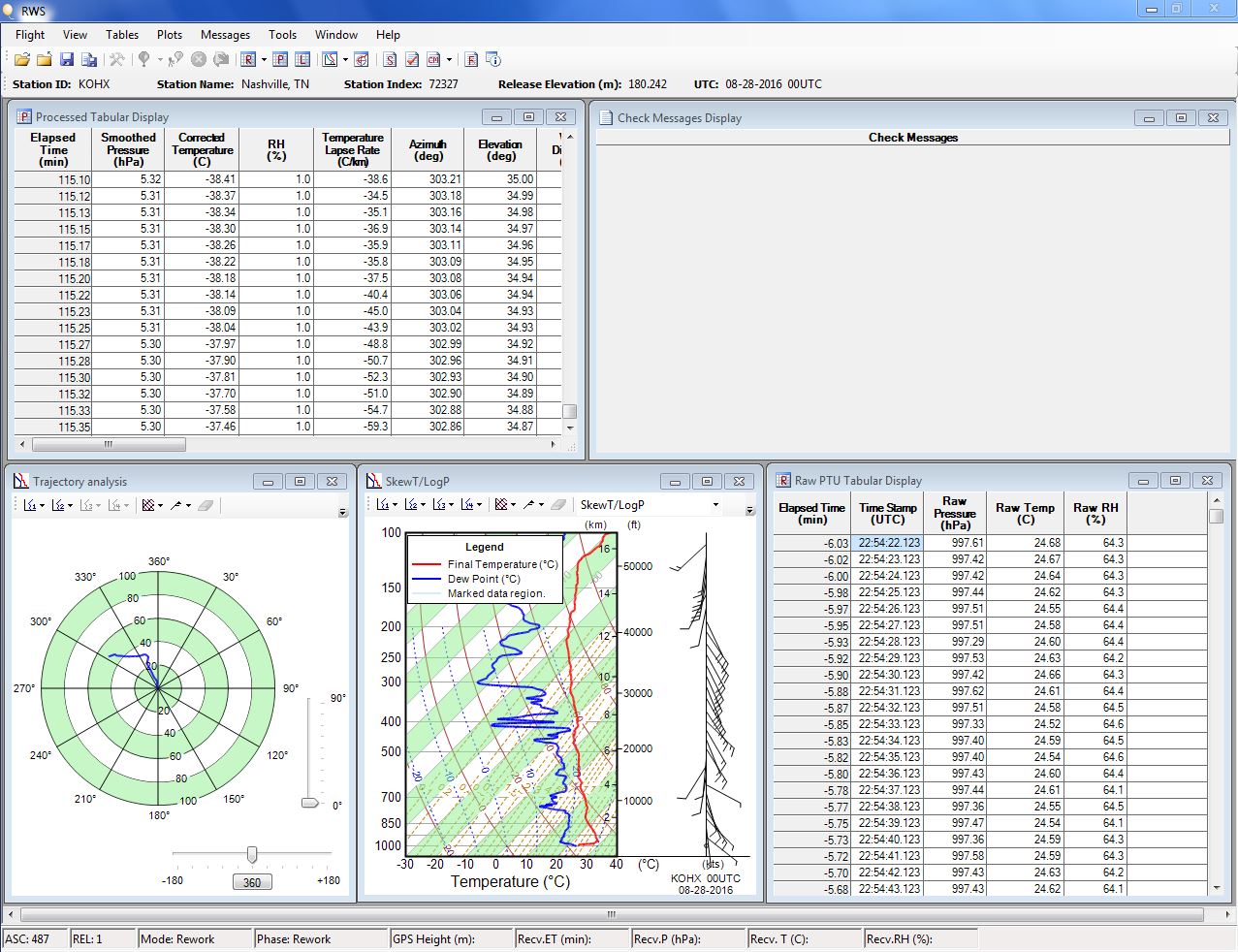

While the radiosonde continues to ascend, it transmits a wide variety of data that is processed by the RWS software, including pressure, temperature, relative humidity, moisture, and wind speed and direction.  Several graphical plots of the data are able to be analyzed, including wind speed and direction, trajectory, a Skew-T diagram, temperature, relative humidity, and pressure.
 RWS software


Approximately 25 minutes into the flight, the balloon reaches 400 mb (about 21,000 feet above ground level) and the software will prompt us to transmit the freezing level data to the National Centers for Environmental Prediction (NCEP).  Here is what a coded freezing level message looks like:

UXUS44 KOHX 26000
OHX 0000 RADAT 81154=

After about an hour into the flight, the balloon usually reaches 70 mb (about 60,000 feet above ground level) and the software will prompt us to transmit the mandatory and significant level data to NCEP.  These data are considered the "meat and potatoes" of the balloon launch, and after it has been transmitted, it provides a snapshot of the vertical profile of the atmosphere near the location the balloon was launched.  Below is an example of what a coded mandatory level message looks like:

USUS44  KOHX  260000
72327  TTAA  68001 72363  99894  35475  14009  00083   / / / / /   / / / / /
92788  / / / / /  / / / / /  85544  29073  14517  70223  12857  24005  50595
05767  35513 40767 15193  30511  30979  29988  29516  25106  40171
31025  20254 52165 29524  15434  67361  29521  10672  73959  30503
88121  75759 30023 77999  31313  58708  82302  51515  10164  00001
10194  16011 23508=


The mandatory and significant level data can be graphically plotted on a diagram called a Skew-T/log-P chart that meteorologists are able to assess how temperature, moisture, and winds change in the atmosphere.  The image below is the most recent Skew-T/log-P from Nashville that is available to forecasters shortly after the mandatory and significant levels are transmitted.
BNA Skew-T

Just under two hours after the balloon is launched, the balloon finally gets so large that it bursts.  After the balloon bursts, the parachute opens and guides the radiosonde slowly back to the surface.  Depending on the direction and strength of the winds in the atmosphere, the radiosonde may land as far away as eastern Tennessee or southern Kentucky!  This typically only occurs between the late fall and early spring when the jet stream winds are strong.  In the summer, winds aloft are weak, and it's not uncommon for the balloon to land 10 miles or less from our office.  In fact, one radiosonde even landed less than a mile from our office where it was launched!  Every once in a while, the radiosonde lands in someone's back yard.  In these instances, the radiosonde is equipped with a bag and instructions to mail it to Kansas City to be reconditioned.  A couple of radiosondes a year might also be returned to us at the office.

After the balloon bursts, one final coded message is transmitted, the flight is archived and electronically sent to the National Centers for Environmental Information (NCEI).  Finally, we need to record data on the flight, including the ascension rate from the surface to 400 mb, the ascension rate from 400 mb to the burst level, and the pressure and height in the atmosphere where the balloon burst.  All of this information gets processed into a performance score for each upper air site.  After we enter this data into a form online, the balloon flight is completed.  Less than 12 hours later, the entire process will begin again.
