Tornadoes:

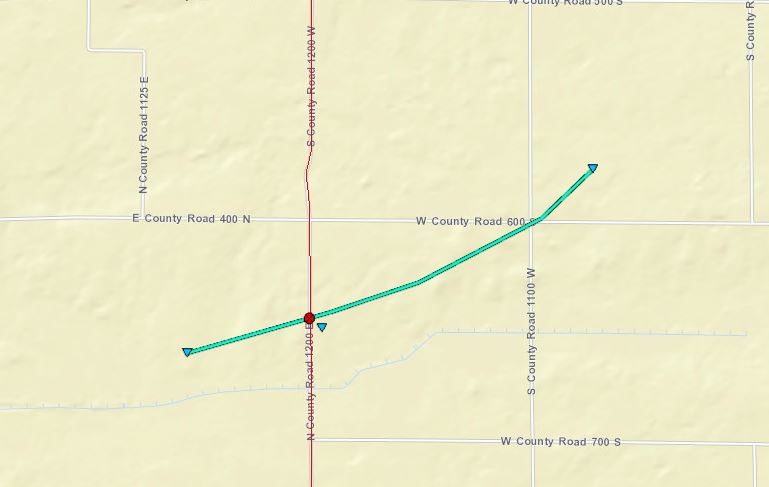

Tornado - Southwest of Wolcott, IN COUNTY NAME Date May 20, 2017 Time (Local) 734-737 pm EDT EF Rating EF0 Est. Peak Winds 65 mph Path Length 2.0 miles (Estimated) Max Width 50 yards Injuries/Deaths 0/0 Summary: The tornado briefly touched down in Benton county at around 734 pm EDT, southwest of the intersection of N 1200 E and E 400 N (Benton Co)/W 600 S (White Co). The circulation likely remained over open farm fields, but a farm just south of the intersection suffered minor damage with a small tree being uprooted and several small objects being thrown around. Given a lack of damage indicators, the start and end points have  been estimated based off radar data. Track Map Downloadable KMZ File

The Enhanced Fujita (EF) Scale classifies tornadoes into the following categories:

EF0 Weak 65-85 mph	EF1 Moderate 86-110 mph	EF2 Significant 111-135 mph	EF3 Severe 136-165 mph	EF4 Extreme 166-200 mph	EF5 Catastrophic 200+ mph

Flooding

The combination of a warm front lifting northward, much above normal moisture for late May, and an upper level system approaching from the west resulted in some heavy rainfall across the area. The image below represents radar rainfall estimates for May 20th (see Rainfall tab for actual rainfall observations). A couple of swaths of heavy rainfall can be noted from the radar estimates.  The first swath extends from northern White county into southwest Elkhart county, with a second area of heavy rainfall from southern Miami county across the western portions of Huntington county.  Rainfall amounts in these heaviest axes were in the 1.5 to 4 inch range.

Radar Estimated Rainfall

Photos & Video:

Tornado/Damage Pictures

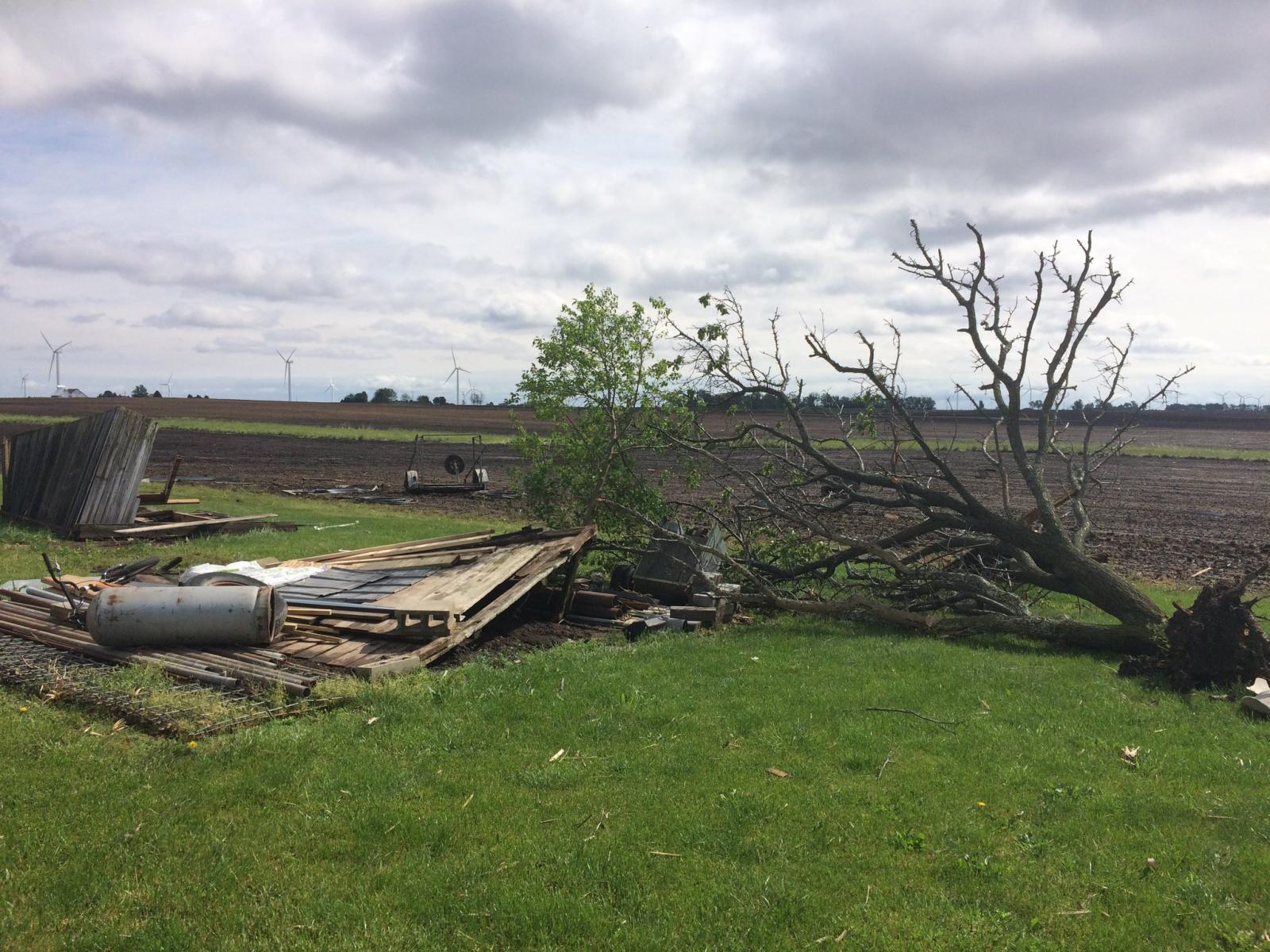

SSW of Wolcott (Courtesy Devin Pitts)	Tornado Damage SSW of Wolcott (Courtesy of John Allen Ph.D.)	South of Remington (Courtesy Kyle Gillett)	Coming Soon

Radar:

Reflectivity (Z)/Storm Relative Motion (SRM) Images

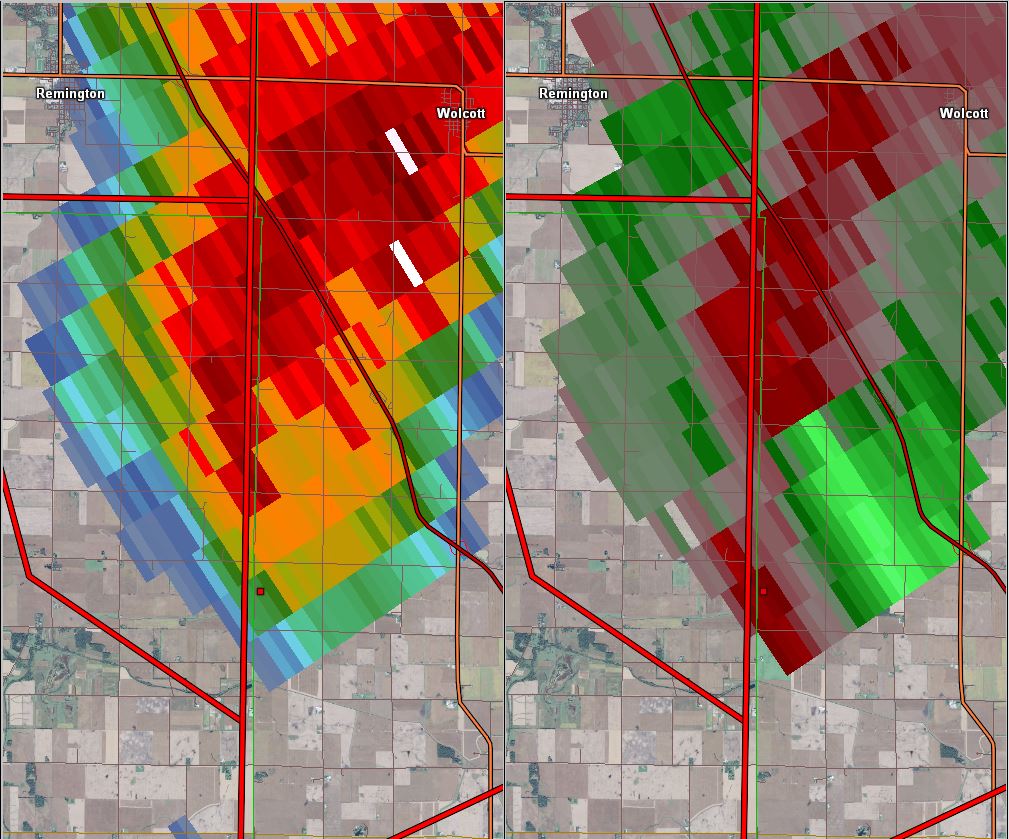

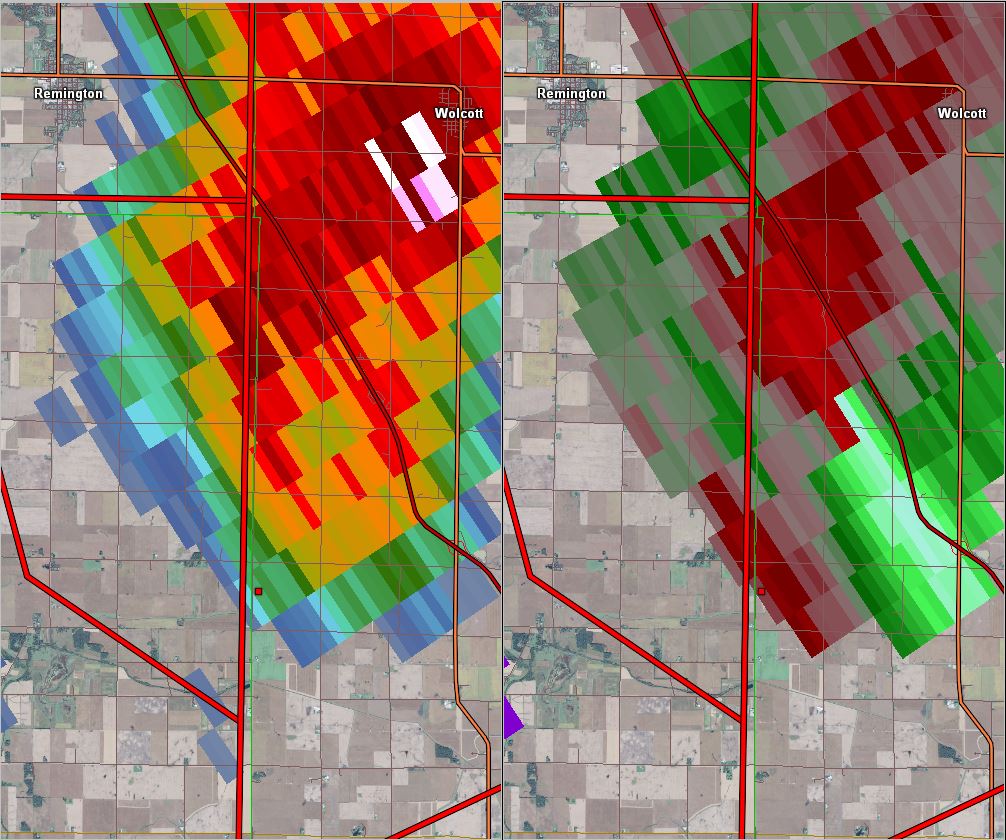

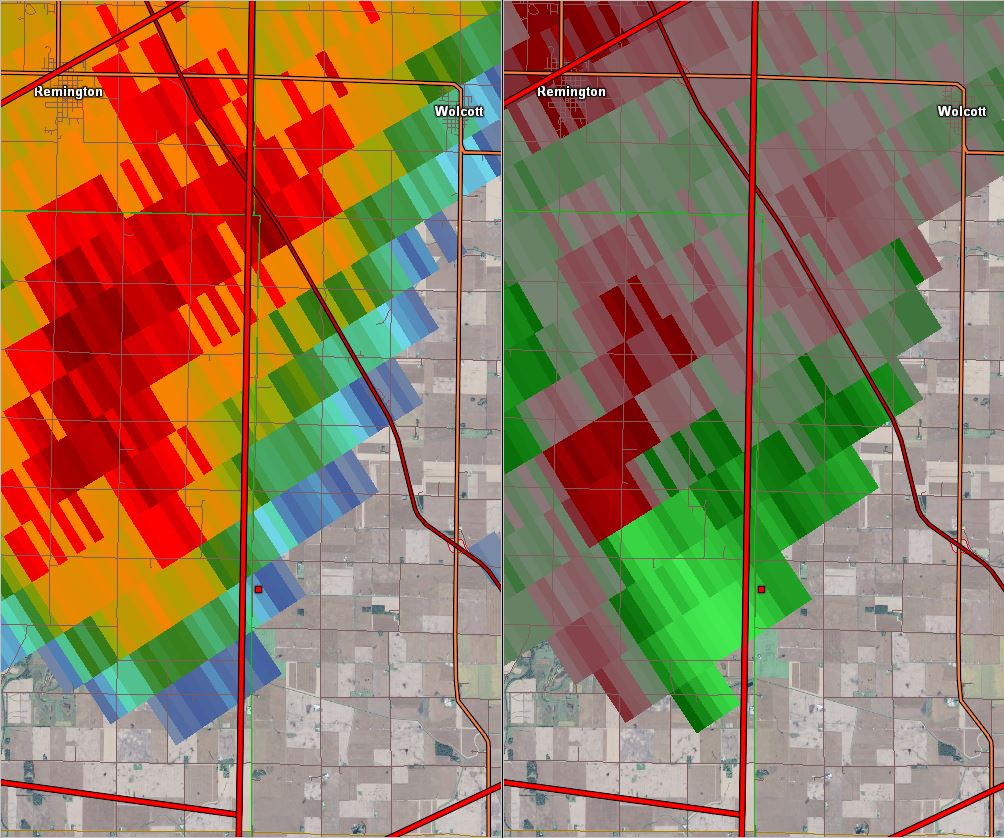

The SRM at 729 pm shows broad, but decent circulation with the storm over eastern Benton County. In the next frame a rapid tightening of the circulation is seen (brightest red and green together-Gate to gate). Tornado develop was likely in progress at this point, crossing into White county around 734 pm. The intensity varied through 738 pm. Keep in mind that the lowest slice of the radar data was sampling around 8000 ft

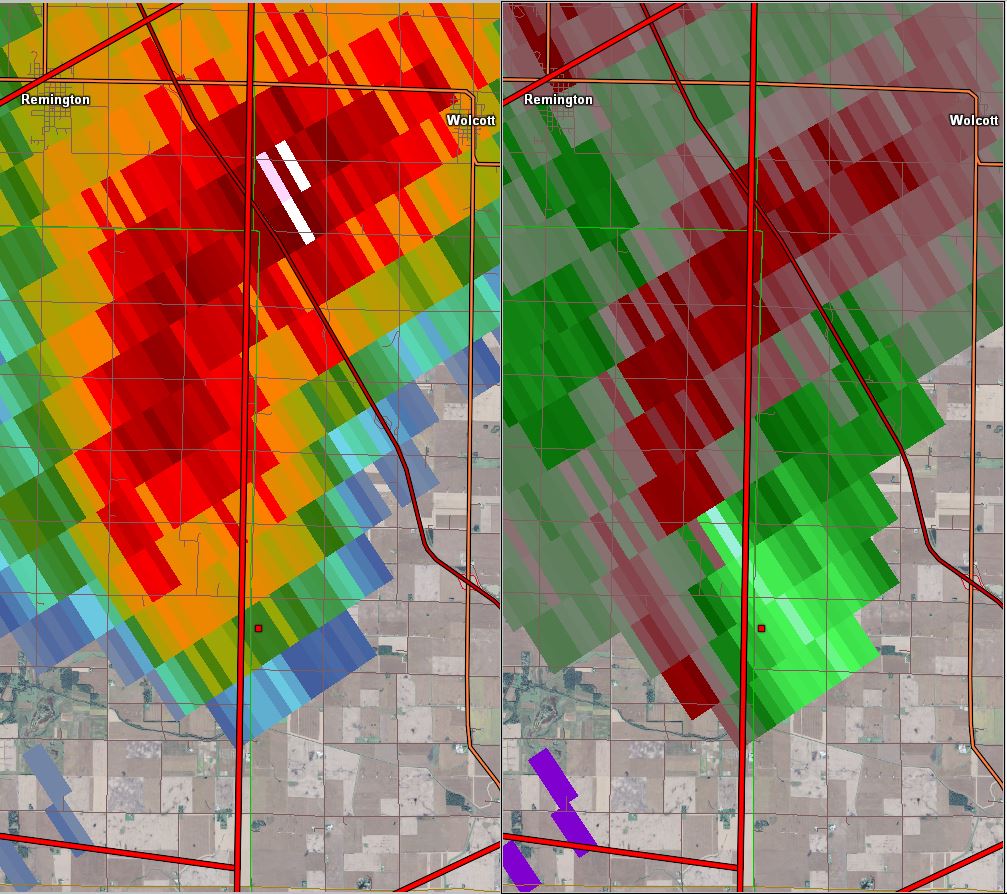

729 pm	732 pm	736 pm	738 pm

Volumetric (3-D) View

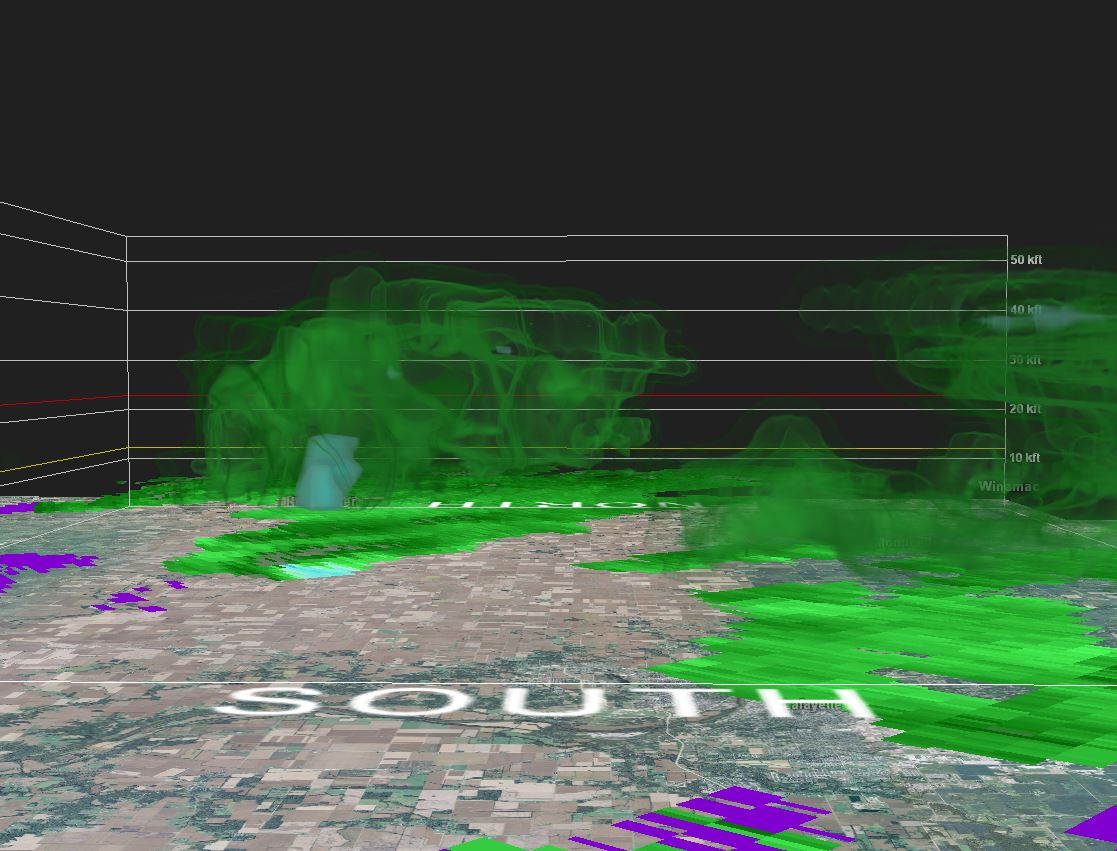

These "3-D" images are a representation of the wind fields within the supercell. Your eyes should be drawn to the light blue color increasing in height and size through each of these frames. What is being seen is not the tornado itself, but a rapidly strengthening updraft which often coincides with an increased risk of tornadic development. Horizontal vorticity likely existed in the area of the storm as a result of the nearby warm front. The updraft drew this vorticity into a vertical axis and rapidly spun up a tornado. Even at 742 pm the updraft is still strong, but field reports indicate the tornado had dissipated at this time.

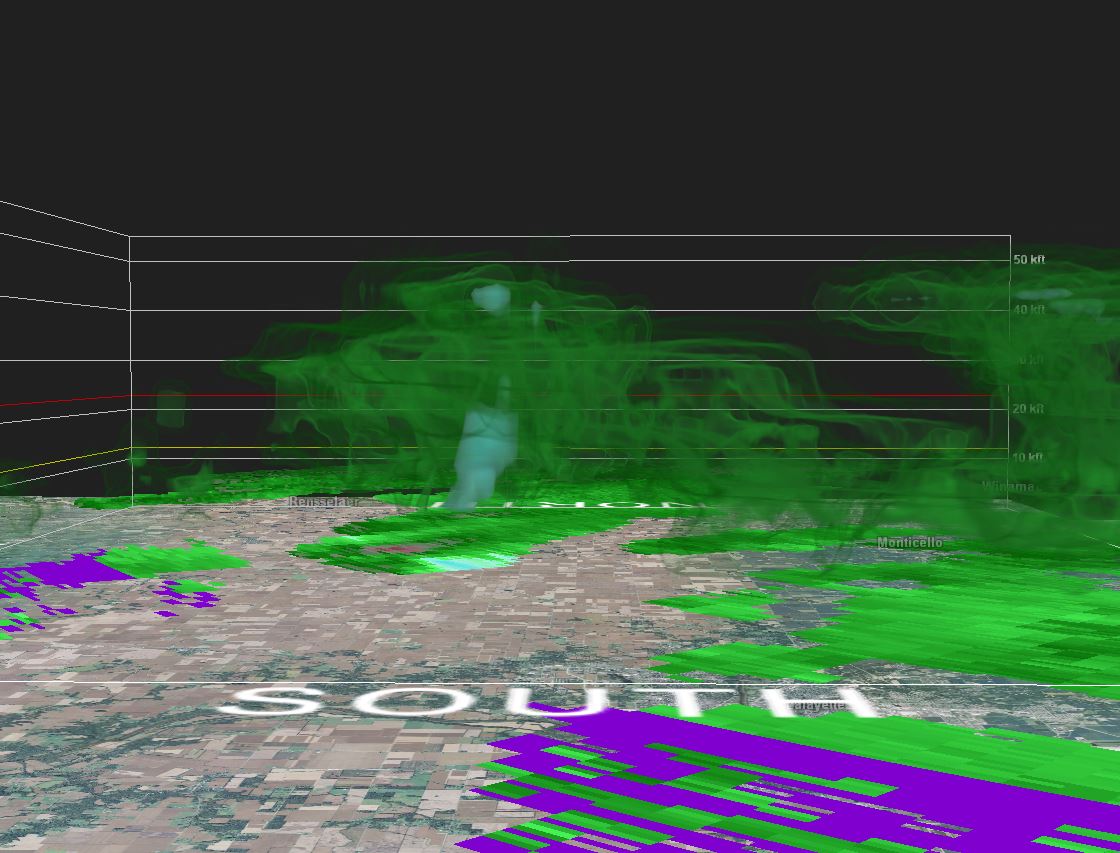

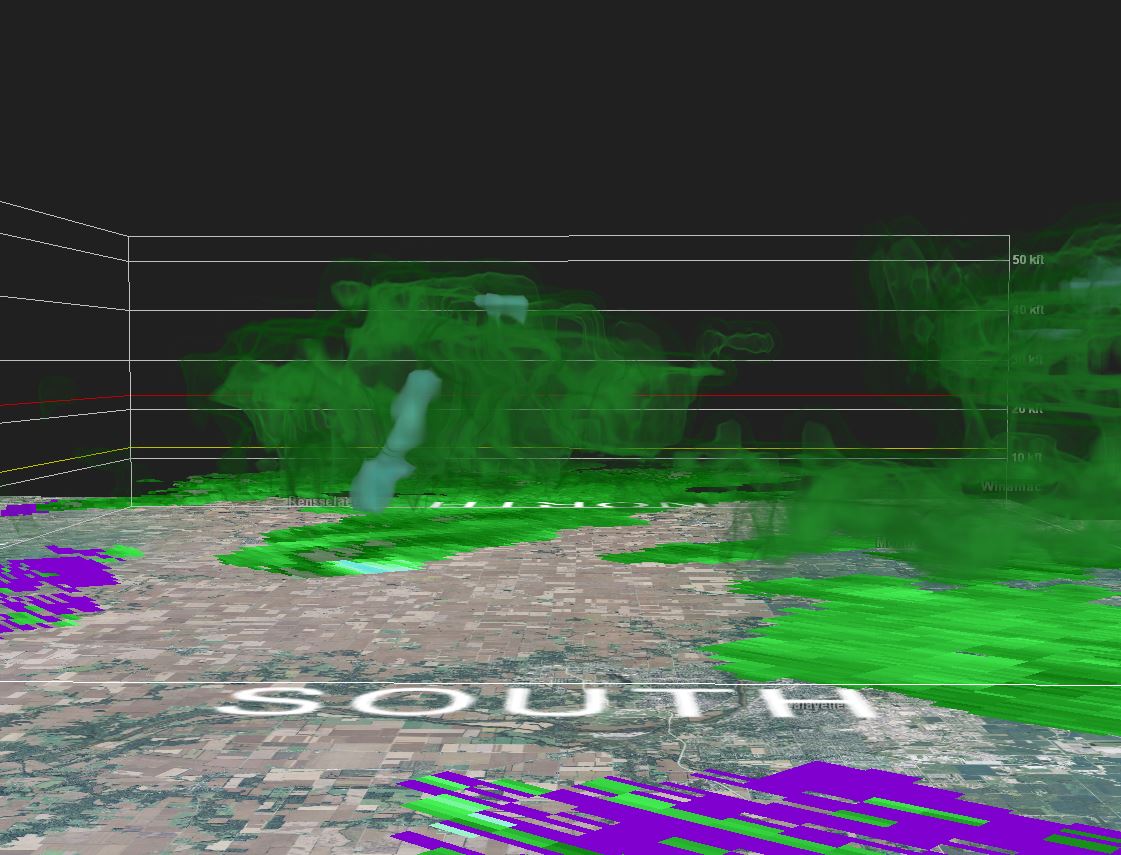

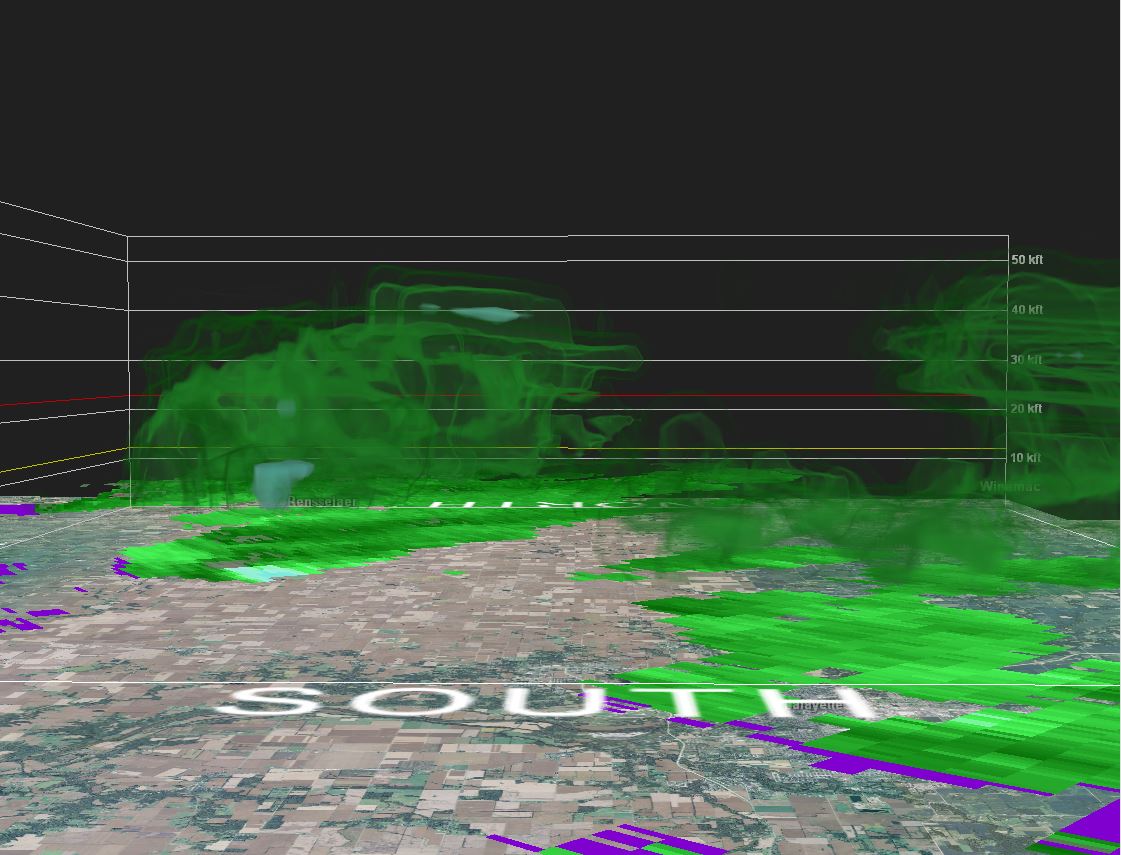

729 pm	732 pm	736 pm	742 pm

Storm Reports

PRELIMINARY LOCAL STORM REPORT...SUMMARY
NATIONAL WEATHER SERVICE NORTHERN INDIANA
1234 AM EDT SUN MAY 21 2017

..TIME...   ...EVENT...      ...CITY LOCATION...     ...LAT.LON...
..DATE...   ....MAG....      ..COUNTY LOCATION..ST.. ...SOURCE....
            ..REMARKS..

0735 PM     TORNADO          8 SSW WOLCOTT           40.65N 87.09W
05/20/2017                   WHITE              IN   TRAINED SPOTTER

            TRAINED SPOTTER REPORTS SLENDER/ROPE CONE
            TORNADO.

0914 PM     HEAVY RAIN       1 WNW INDIANA BEACH     40.80N 86.79W
05/20/2017  M2.01 INCH       WHITE              IN   MESONET



1004 PM     HEAVY RAIN       2 E WINAMAC             41.06N 86.57W
05/20/2017  E4.00 INCH       PULASKI            IN   PUBLIC

            RELAYED FROM BROADCAST MEDIA. ANOTHER PERSON
            HAD ENTIRE FRONT YARD UNDER WATER AND
            BASEMENT FLOODING.

1024 PM     HEAVY RAIN       1 ESE NAPPANEE          41.44N 85.97W
05/20/2017  M2.57 INCH       ELKHART            IN   MESONET

            SINCE MIDNIGHT.

1024 PM     HEAVY RAIN       3 SW BOURBON            41.27N 86.15W
05/20/2017  M3.24 INCH       MARSHALL           IN   MESONET

            SINCE MIDNIGHT.

1102 PM     FLOOD            3 E LINCOLNVILLE        40.76N 85.62W
05/20/2017                   HUNTINGTON         IN   TRAINED SPOTTER

            WATER ACROSS ROADWAY SOUTH OF CHAPEL RD AND
            SR 105.

1110 PM     FLOOD            4 NNW MOUNT ETNA        40.80N 85.58W
05/20/2017                   HUNTINGTON         IN   TRAINED SPOTTER

            WATER ACROSS ROADWAY.

1121 PM     HEAVY RAIN       1 ESE NAPPANEE          41.44N 85.97W
05/20/2017  M3.17 INCH       ELKHART            IN   MESONET

            SINCE MIDNIGHT.

1122 PM     HEAVY RAIN       GOSHEN                  41.58N 85.84W
05/20/2017  M2.47 INCH       ELKHART            IN   MESONET

            SINCE MIDNIGHT.

1124 PM     HEAVY RAIN       2 ESE SOMERSET          40.66N 85.79W
05/20/2017  M2.74 INCH       WABASH             IN   MESONET

            SINCE MIDNIGHT.

1124 PM     HEAVY RAIN       3 WSW AMBOY             40.59N 85.98W
05/20/2017  M2.63 INCH       MIAMI              IN   MESONET

            SINCE MIDNIGHT.

1126 PM     HEAVY RAIN       2 NW MARION             40.57N 85.69W
05/20/2017  M1.63 INCH       GRANT              IN   MESONET

            SINCE MIDNIGHT.

1127 PM     HEAVY RAIN       WINONA LAKE             41.22N 85.82W
05/20/2017  M1.94 INCH       KOSCIUSKO          IN   MESONET

            SINCE MIDNIGHT.

1129 PM     HEAVY RAIN       1 NNW LARWILL           41.19N 85.63W
05/20/2017  M1.81 INCH       WHITLEY            IN   MESONET

            SINCE MIDNIGHT.

1130 PM     HEAVY RAIN       2 SE CENTREVILLE        41.90N 85.49W
05/20/2017  M1.61 INCH       ST. JOSEPH         MI   MESONET

            SINCE MIDNIGHT.

1134 PM     HEAVY RAIN       1 SW GOSHEN             41.57N 85.85W
05/20/2017  M2.05 INCH       ELKHART            IN   COCORAHS

            SINCE MIDNIGHT.

1136 PM     FLOOD            4 S HUNTINGTON          40.83N 85.51W
05/20/2017                   HUNTINGTON         IN   TRAINED SPOTTER

            WATER ACROSS THE ROADWAY.

Rain Reports

Public Information Statement
National Weather Service Northern Indiana
141 AM EDT Sun May 21 2017

...Rainfall Reports Last 24 Hours...

Location                     Amount    Time/Date       Lat/Lon

...Indiana...

...Elkhart County...
1 ESE Nappanee               3.17 in   1121 PM 05/20   41.44N/85.97W
1 ESE Nappanee               2.57 in   1024 PM 05/20   41.44N/85.97W
Goshen                       2.47 in   1122 PM 05/20   41.58N/85.84W
1 SW Goshen                  2.05 in   1134 PM 05/20   41.57N/85.85W

...Huntington County...
1 ENE Bowerstown             1.79 in   0100 AM 05/21   40.90N/85.41W
3 SSW Huntington             1.76 in   0118 AM 05/21   40.83N/85.53W

...Kosciusko County...
Northern Indiana Wfo         2.13 in   1200 AM 05/21   41.36N/85.70W
Winona Lake                  1.94 in   1127 PM 05/20   41.22N/85.82W
2 SW Warsaw                  1.66 in   0112 AM 05/21   41.21N/85.87W
Tippecanoe Lake              1.65 in   0115 AM 05/21   41.33N/85.77W
2 N North Webster            1.63 in   0112 AM 05/21   41.36N/85.70W
2 WSW Syracuse               1.59 in   0117 AM 05/21   41.41N/85.79W

...Marshall County...
Plymouth                     3.67 in   0117 AM 05/21   41.34N/86.31W
3 SW Bourbon                 3.24 in   1024 PM 05/20   41.27N/86.15W
2 W Mentone                  1.57 in   0118 AM 05/21   41.18N/86.08W

...Miami County...
3 WSW Amboy                  2.63 in   1124 PM 05/20   40.59N/85.98W
3 W Amboy                    2.63 in   0120 AM 05/21   40.59N/85.98W

...Noble County...
3 NE Avilla                  1.70 in   0114 AM 05/21   41.40N/85.20W
1 E Big Lake                 1.57 in   0106 AM 05/21   41.28N/85.47W

...Pulaski County...
2 E Winamac                  4.00 in   1004 PM 05/20   41.06N/86.57W

...Steuben County...
1 SE Crooked Lake            1.76 in   0118 AM 05/21   41.66N/85.02W
2 W Silver Lake              1.69 in   1215 AM 05/21   41.63N/85.11W

...Wabash County...
2 ESE Somerset               3.26 in   0118 AM 05/21   40.66N/85.79W
Somerset                     2.93 in   0120 AM 05/21   40.66N/85.81W
2 ESE Somerset               2.74 in   1124 PM 05/20   40.66N/85.79W
2 ESE Lagro                  1.77 in   1215 AM 05/21   40.81N/85.68W

...White County...
Norway                       2.57 in   1145 PM 05/20   40.78N/86.76W
1 WNW Indiana Beach          2.01 in   0914 PM 05/20   40.80N/86.79W
1 WNW Indiana Beach          1.90 in   0115 AM 05/21   40.80N/86.79W

...Whitley County...
1 NNW Larwill                1.81 in   1129 PM 05/20   41.19N/85.63W
Tri-lakes                    1.60 in   0107 AM 05/21   41.22N/85.48W
2 NE Tri-Lakes               1.54 in   0113 AM 05/21   41.25N/85.45W

Observations are collected from a variety of sources with varying
equipment and exposures. We thank all volunteer weather observers
for their dedication. Not all data listed are considered official.

Environment

A very moist air mass moved into the area Saturday setting the stage for heavy rainfall Saturday evening. The strongest thunderstorms were located across southern portions of the forecast area where the greatest instability was located to the north of the warm front.

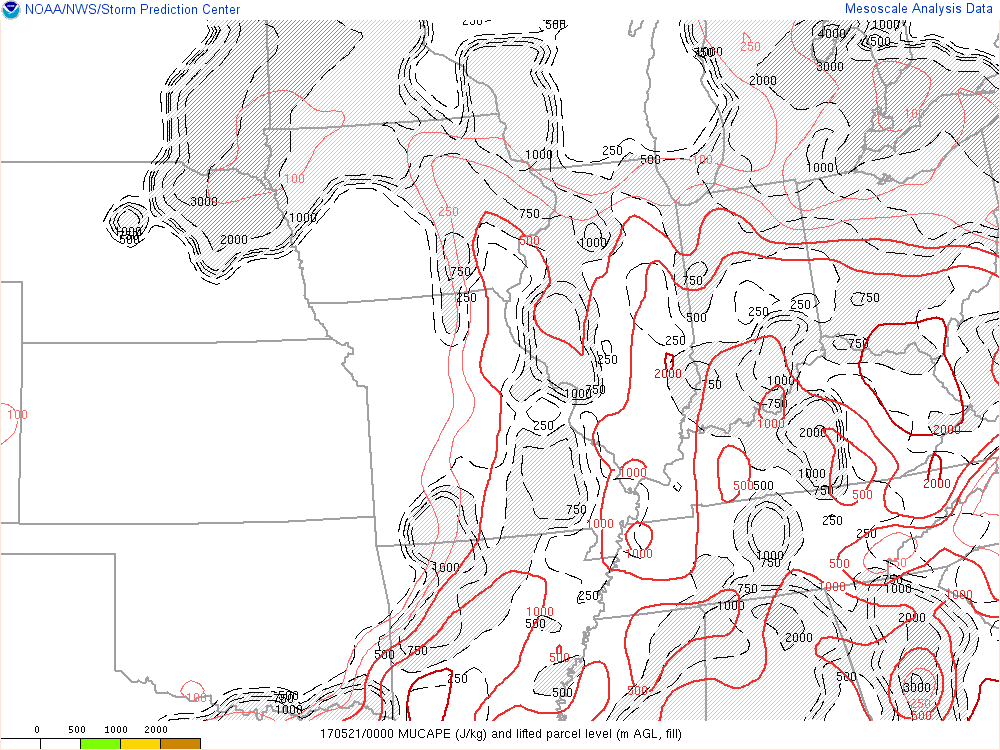

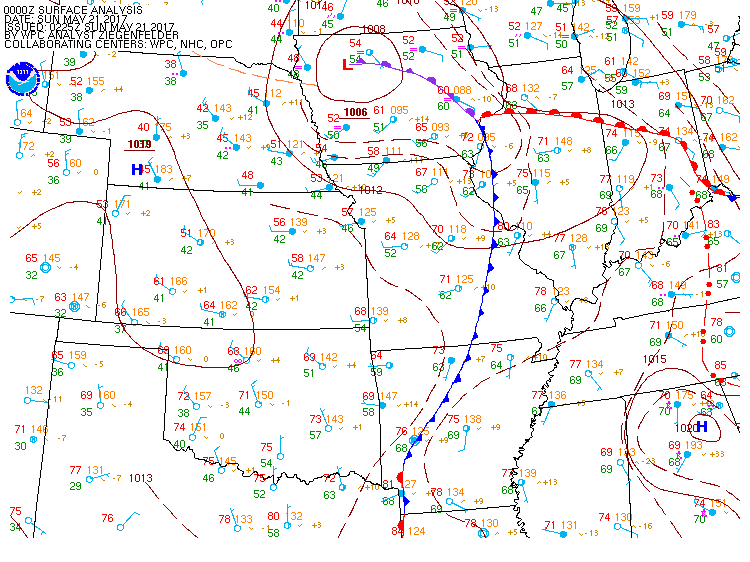

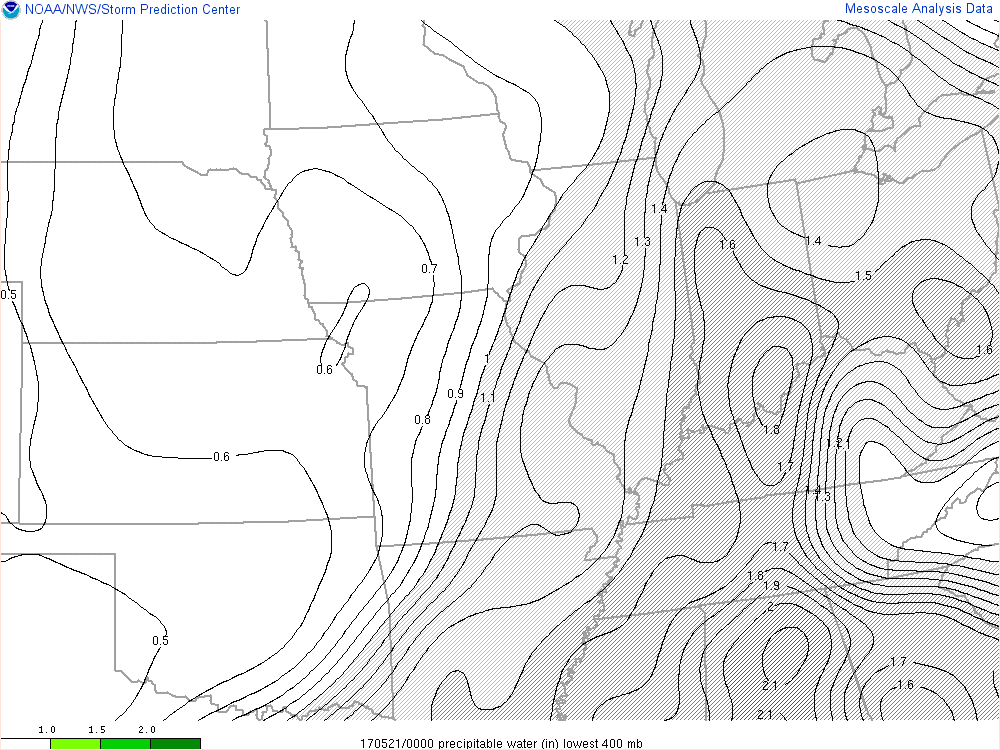

8pm May 20 Surface Analysis	8pm May 20 Precipitable Water	8pm May 20 Most Unstable CAPE
