November 15, 2006 Hole Punch Clouds

Unusual Cloud Phenomena Seen in Central Wisconsin

During the afternoon of November 15, 2006, an unusual cloud formation was seen across central Wisconsin. Known as "hole punch clouds," the holes develop as ice crystals above the main cloud layer fall through the clouds, causing the super-cooled water droplets to evaporate. The result is a circular form void of clouds, with a mass of crystals in the center.

The photo below was taken by Samantha Weise in Stevens Point.
Hole punch cloud

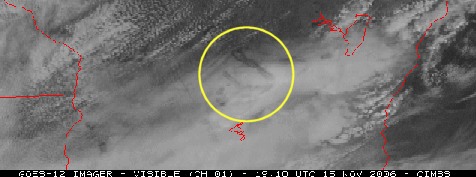

The source of the ice crystals was exhaust from jets. Visible satellite imagery on November 15 (below) showed aircraft dissipation trails (distrails) above central and south-central Wisconsin. Particles in the aircraft exhaust acted as ice nuclei, causing the ice crystals to grow and then fall, creating the punch holes and streaks in the main cloud layer.
Visible satellite image

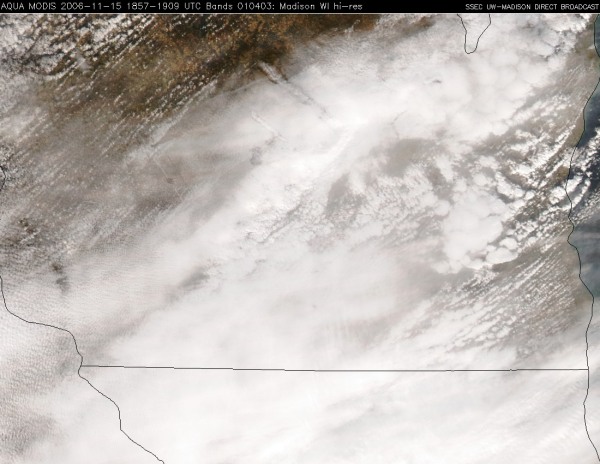

The image below is a high resolution Aqua MODIS true color image centered on Madison, which clearly shows the northwest-southeast oriented distrails. Satellite images courtesy of the SSEC, University of Wisconsin.
MODIS imagery
