November 18, 2017 Squall Line and Tornadoes

Tornadoes:

Click to toggle damage path/points   Path:    Points: Select from the drop down list below to zoom to individual survey results ---All Tornadoes--- Click the icons on the map to view damage photos/info Download KML (Disable Pop-up Blocker) -----Select from list-----

Show/Hide Key

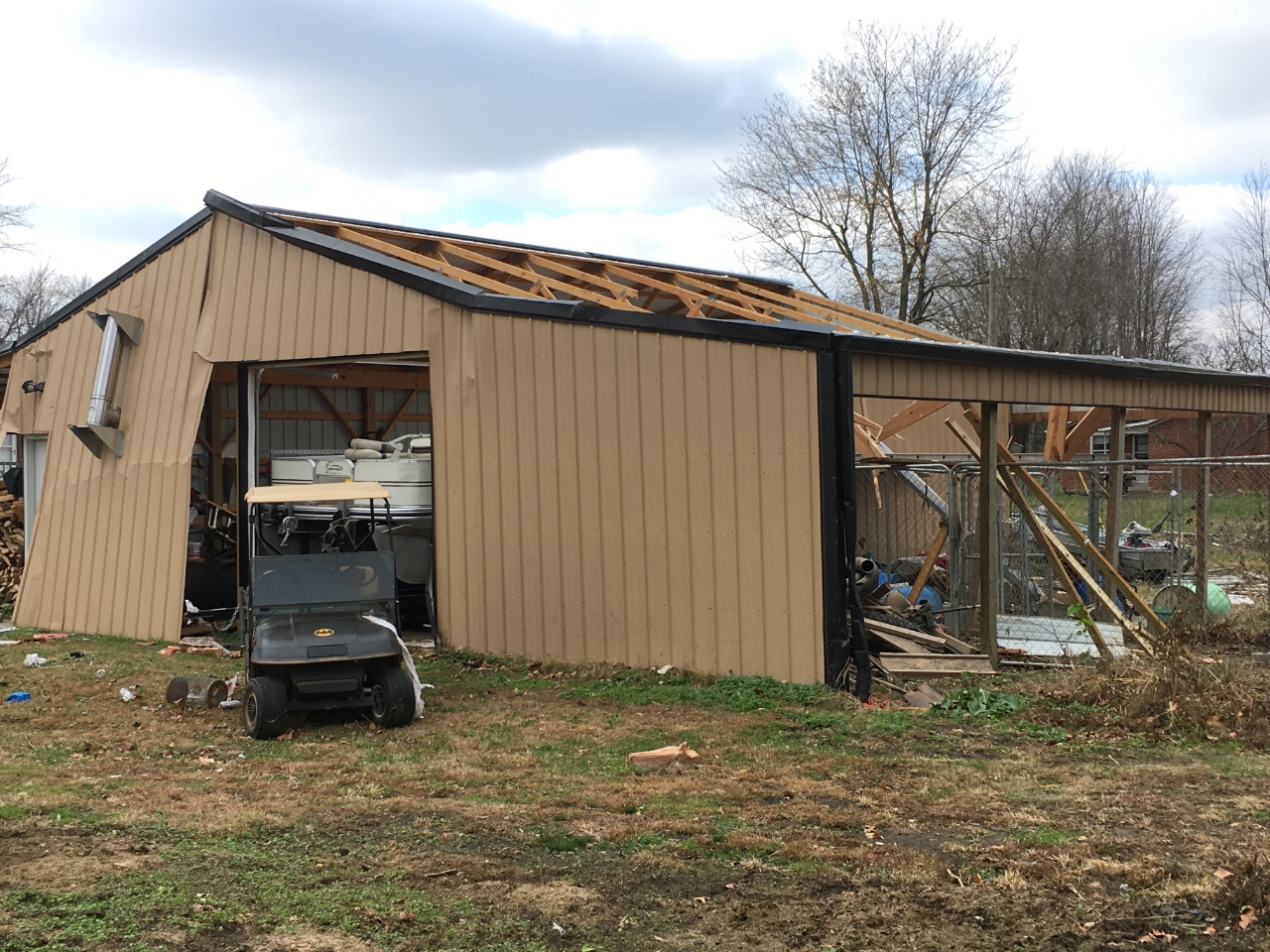

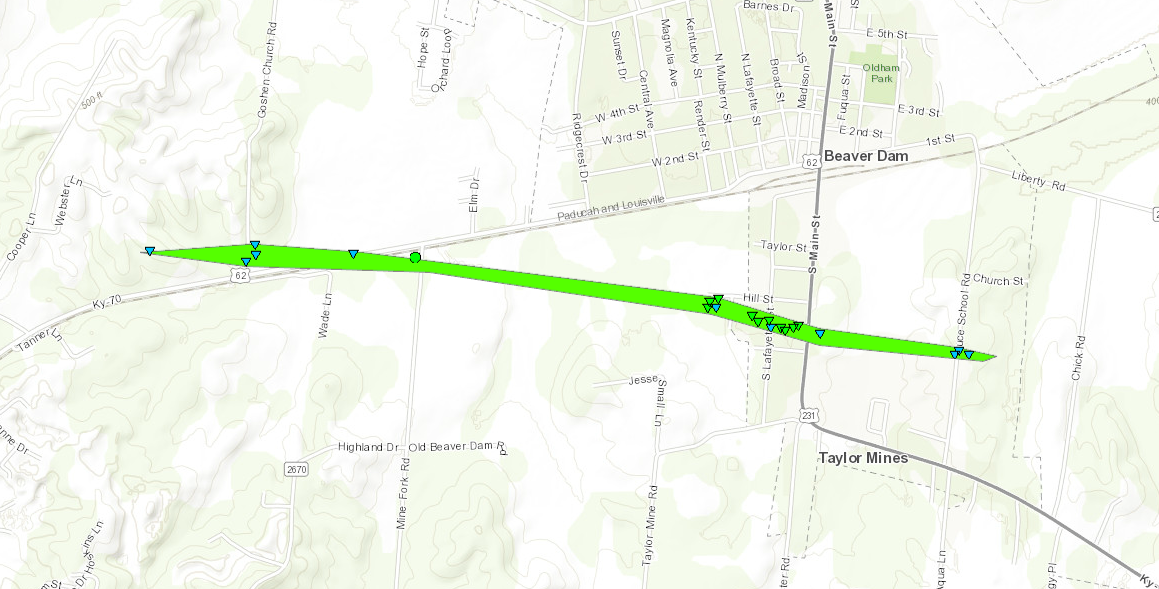

Tornado - Beaver Dam, KY Ohio County Date November 18, 2017 Time (Local) 3:20 PM CST EF Rating EF-1 Est. Peak Winds 95-100 mph Path Length 2 miles Max Width 60 yards Injuries/Deaths 1 injury Summary: This small tornado was embedded in a fast moving squall line that raced east at 55 mph. The twister first touched down at a home on U.S. Highway 62 just west of Goshen Church Road, tearing off shingles and uprooting a tree. It moved east-southeast, uprooting and snapping trees near the intersection of Hwy 62 and Goshen Church Rd, along with damaging some small outbuildings. It next downed a tree on Mine Fork Road that fell between a home and outbuilding, damaging both structures and causing a minor head injury to the occupant of the shed. Continuing over open fields, it next hit several residences along Hill, Mulberry, and South Mulberry streets before crossing U.S. Highway 231 and causing minor roof damage to the Post Office. The greatest damage occurred in this two block area, where up to a dozen outbuildings were destroyed or heavily damaged, and sections of roofing were lifted off homes and garages. Fences in the neighborhood were blown in a cyclonic pattern, providing evidence of the tight rotation pattern of the storm. After crossing Hwy 231, the tornado damaged several large warehouses, scattering wood and sheet metal debris. Along Bruce School Road, a chain link fence was flattened, and insulation was sucked out of the damaged roof of a two story home, then spattered along the east side of the home and adjacent vehicles. Another large tree was uprooted in this yard before the tornado lifted. Sheet metal and shingles were lifted into trees along the route of the storm. The NWS thanks Ohio County EMA for assistance in this damage survey. Track Map Downloadable KMZ File

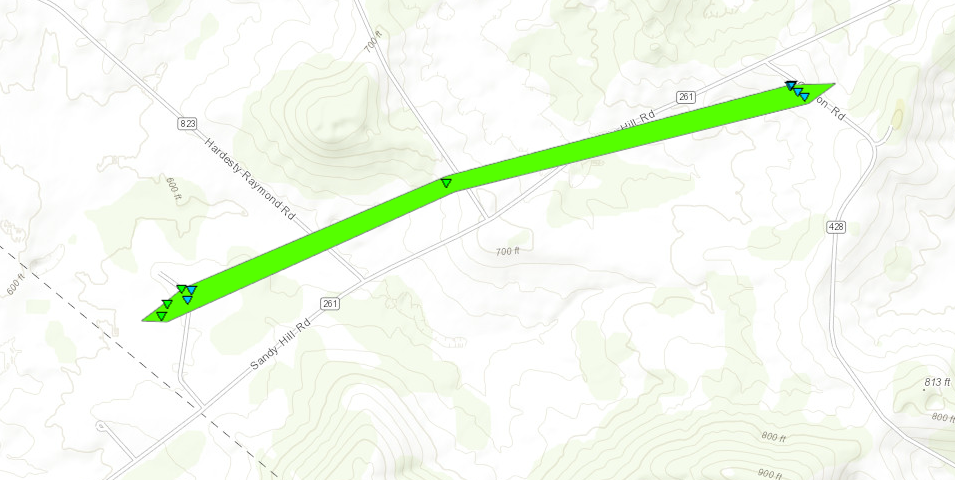

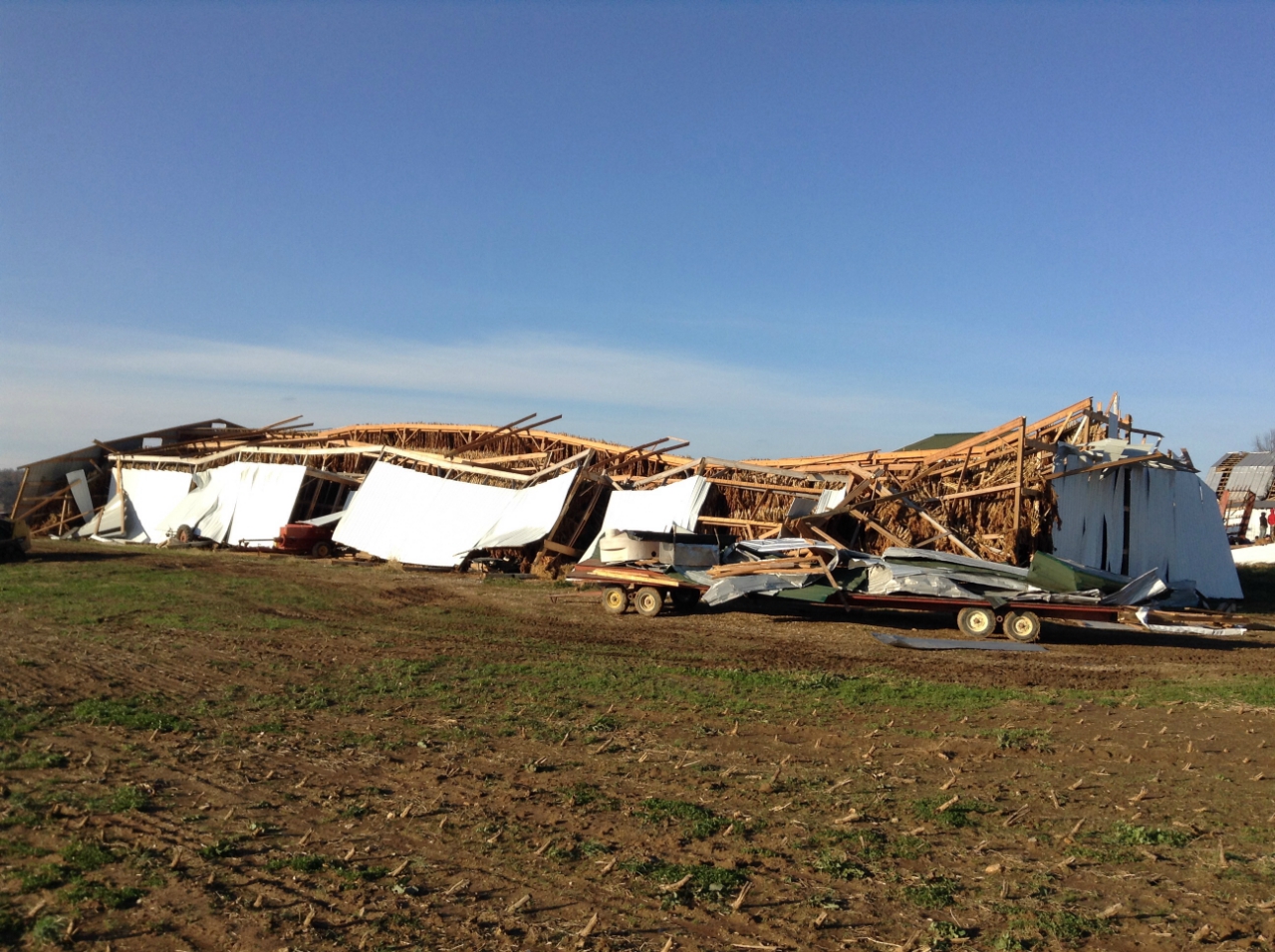

Tornado - Near Guston, KY Meade County Date November 18, 2017 Time (Local) 4:32 PM EST EF Rating EF-1 Est. Peak Winds 100-105 mph Path Length 1.8 miles Max Width 50 yards Injuries/Deaths 1 injury Summary: The tornado touched down just inside the Breckinridge-Meade County line north of Irvington. It pushed a large tobacco barn 15 feet eastward, tore off its roof, and collapsed several walls. Debris from the barn was scattered over a half mile downwind. The tornado moved east-northeast, skipping along a wooded area where several trees were snapped or uprooted, then hit a mobile home on Fackler Road, rolling the anchored unit several times, destroying the home. The owner sustained only minor injuries as he rolled over with his house, crawling out of a hole after it settled. A garage on the property was also destroyed. The tornado continued skipping along the northwest side of Sandy Hill Rd, damaging outbuildings on another farm, before crossing KY highway 261 at Guston Rd. A split level home on Guston Rd had part of its roof removed, with insulation spattered on the lee side of the home. An occupant of the home reported he was descending the stairs as the roof was torn off, and was briefly drawn up the stairs as it occurred. Debris from the split level home was dropped across the road, where a few more trees were snapped and uprooted. The tornado then flattened a fence and peeled a section of sheet metal on an outbuilding before lifting. The NWS thanks Meade County EMA and Remote Aerial for their assistance in this damage survey. Track Map   Downloadable KMZ File

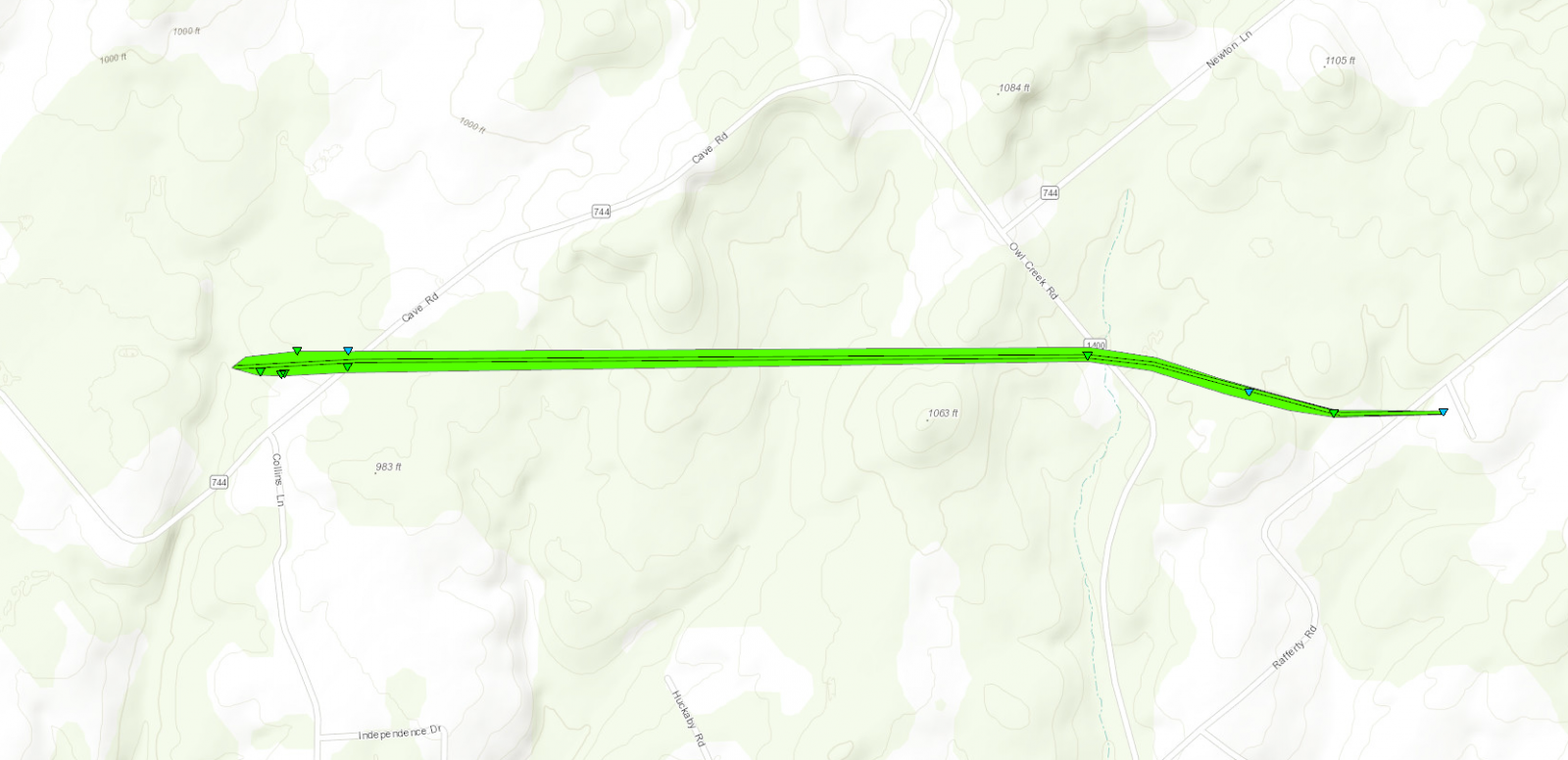

Tornado - near Hobson, KY Taylor County Date November 18, 2017 Time (Local) 6:00 PM EST EF Rating EF-1 Est. Peak Winds 90-95 mph Path Length 1.4 miles Max Width 50 yards Injuries/Deaths None Summary: This small, narrow squall-line spinup tornado moved over rural countryside, damaging or destroying a half dozen outbuildings and doing minor tree damage as it traveled east-southeast over three farmsteads. Only minor roof damage occurred to one home in its path. NWS Louisville thanks Taylor County Emergency Management for their assistance in this damage survey.   Track Map Downloadable KMZ File

The Enhanced Fujita (EF) Scale classifies tornadoes into the following categories:

EF0 Weak 65-85 mph	EF1 Moderate 86-110 mph	EF2 Significant 111-135 mph	EF3 Severe 136-165 mph	EF4 Extreme 166-200 mph	EF5 Catastrophic 200+ mph

Wind:

In addition to the three tornadoes, straight line wind damage was reported across portions of southern Indiana and central Kentucky. The most widespread wind damage was in Bullitt County, KY. There an NWS Storm survey found a swath of intermittent wind damage extending from Shepherdsville, KY to Mount Washington, KY. The damage path was approximately 11.1 miles long with a width of about 2 miles. The damage was mainly confined to areas along either side of Highway 44 between Shepherdsville and Mount Washington. Numerous trees were downed and several buildings received carport and shingle damage.

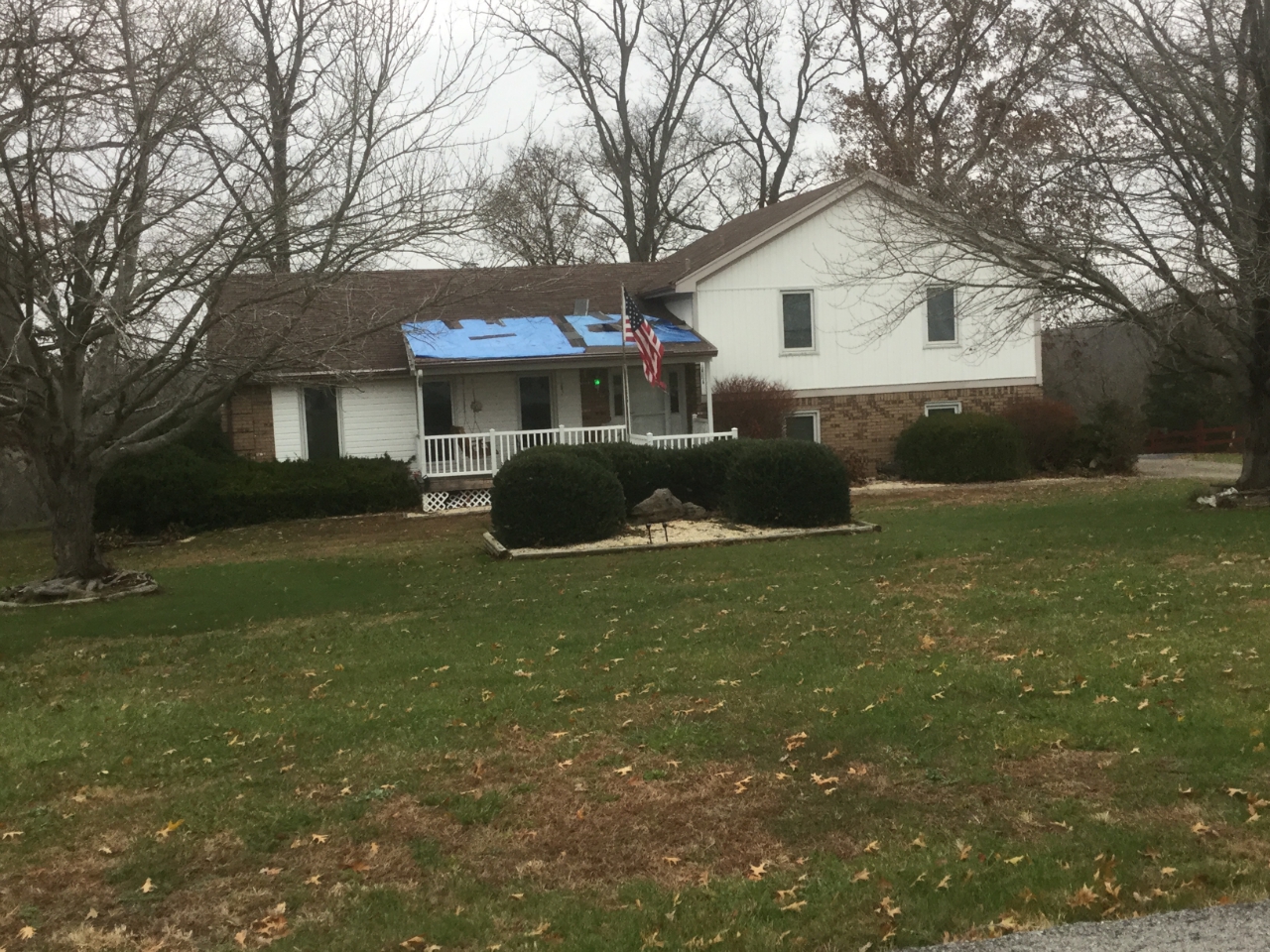

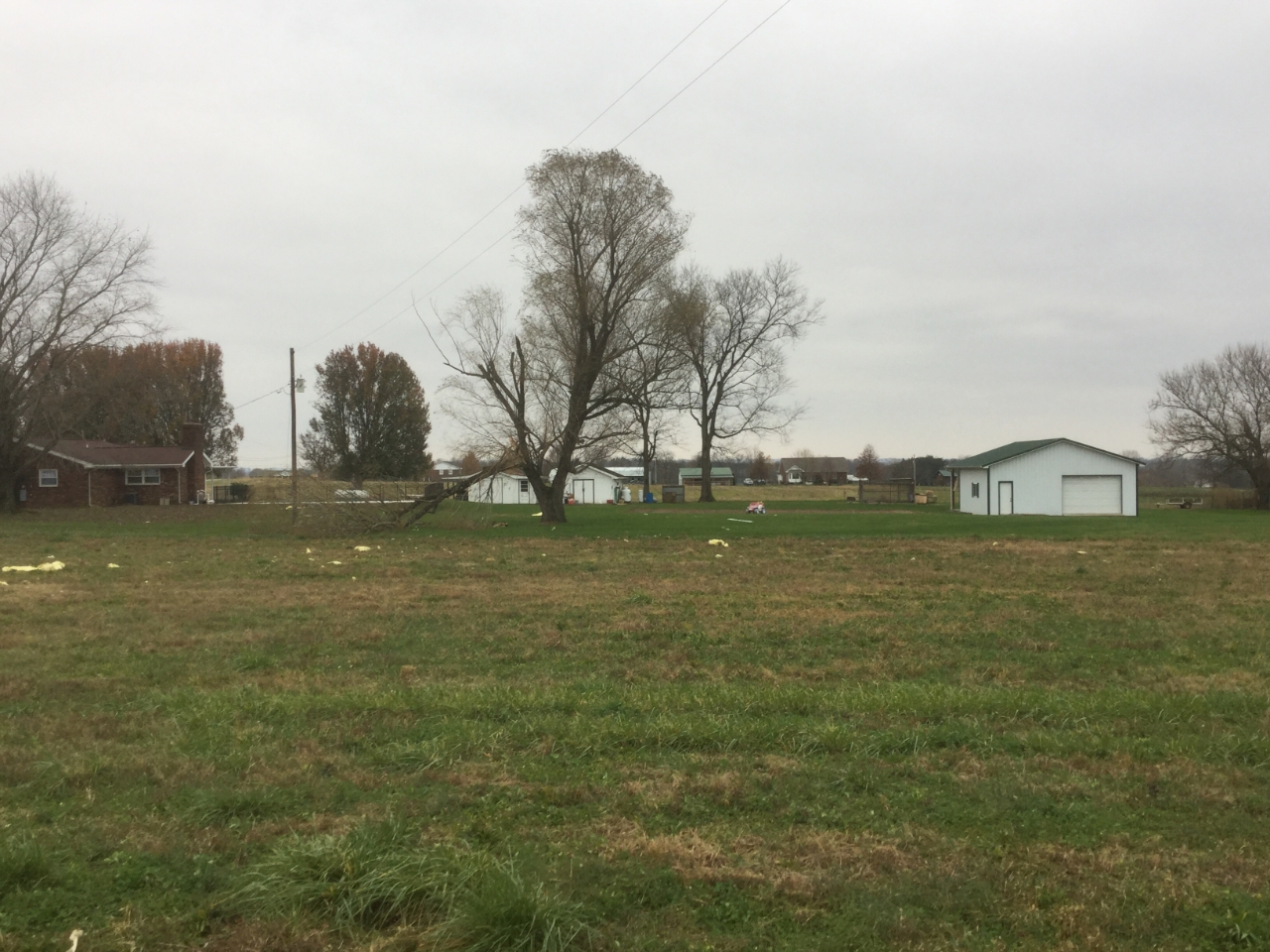

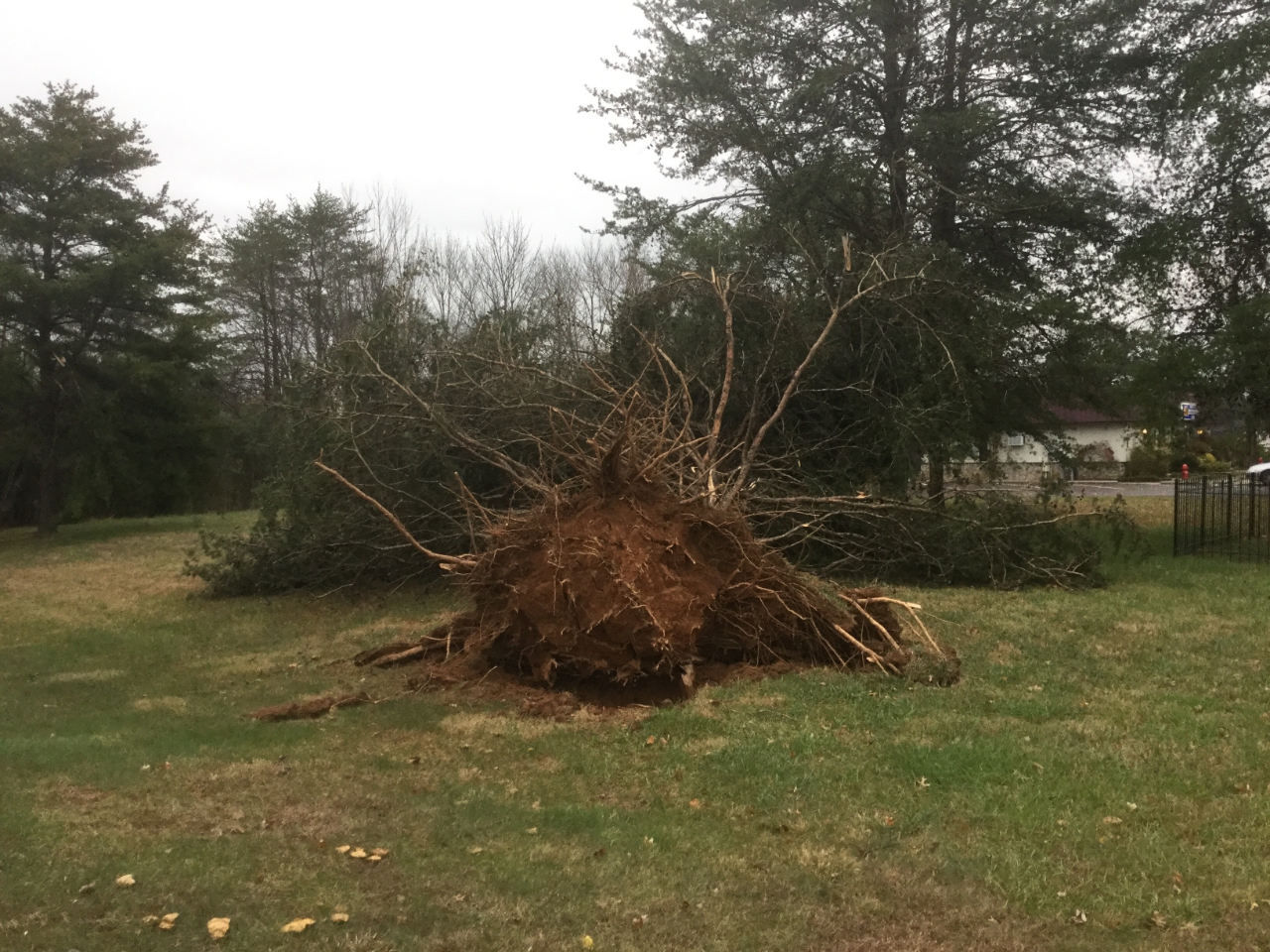

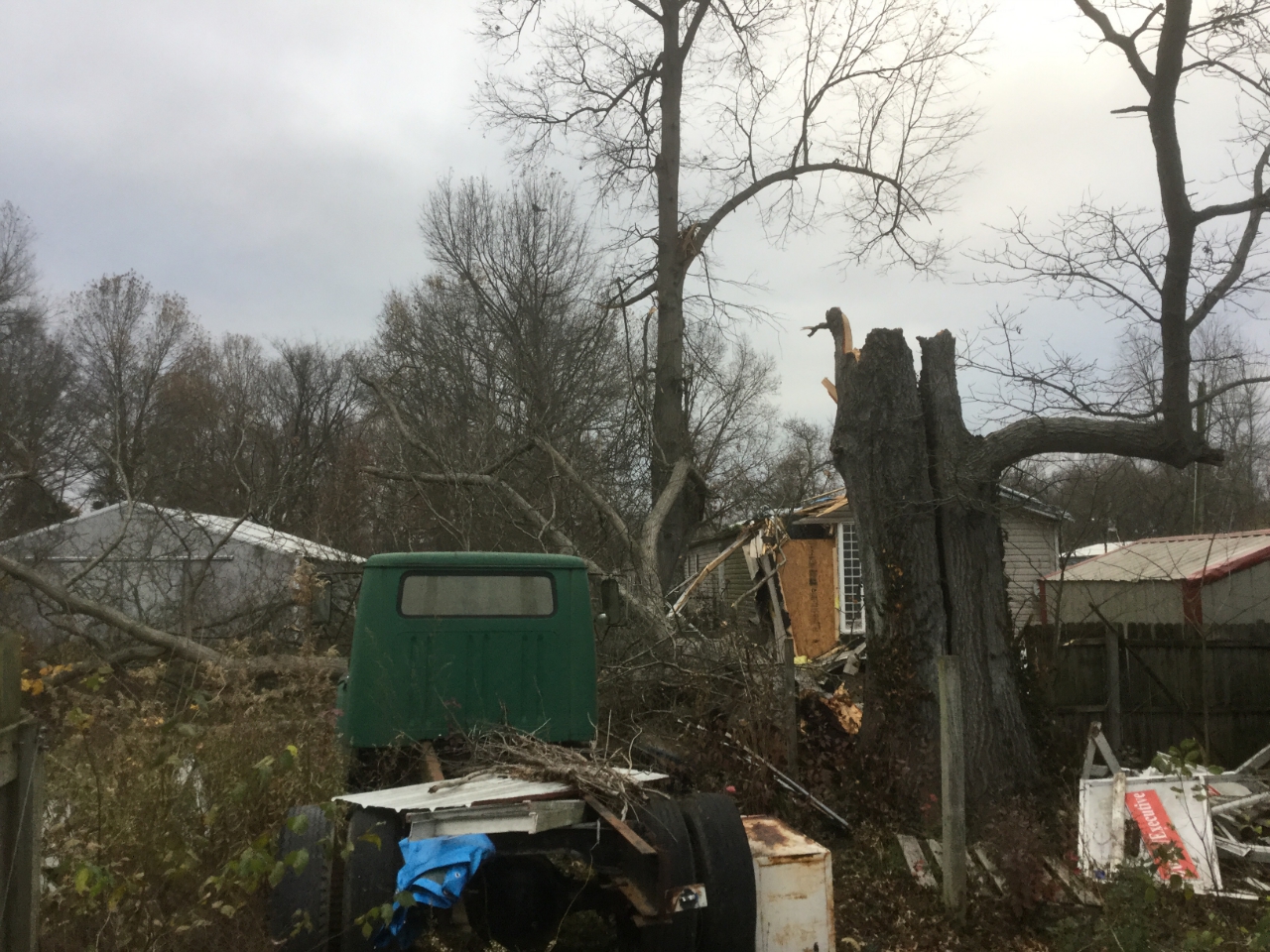

Tree and house damage - Bullitt County	Tree uprooted - Bullitt County	Tree damage - Bullitt County	Roof damage - Bullitt County

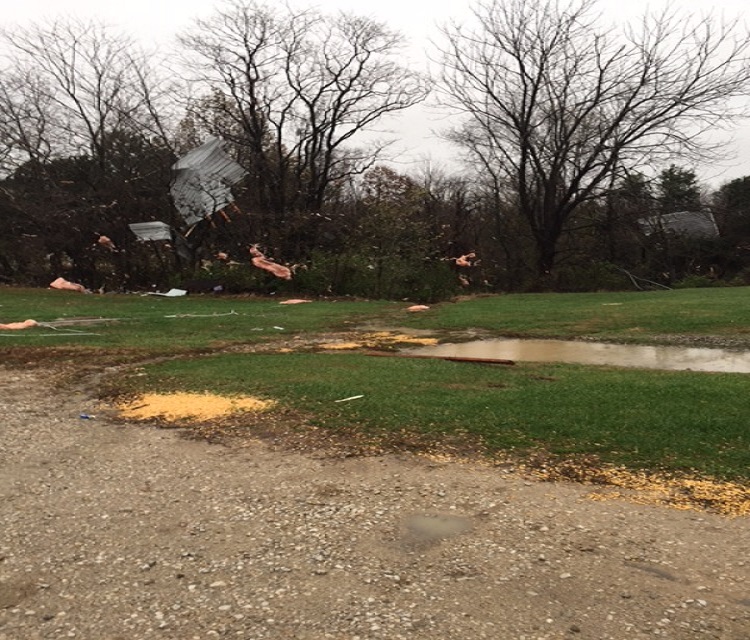

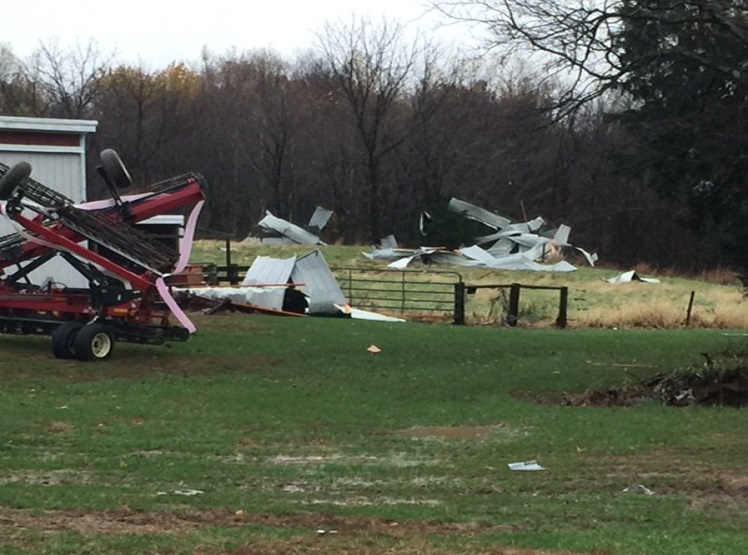

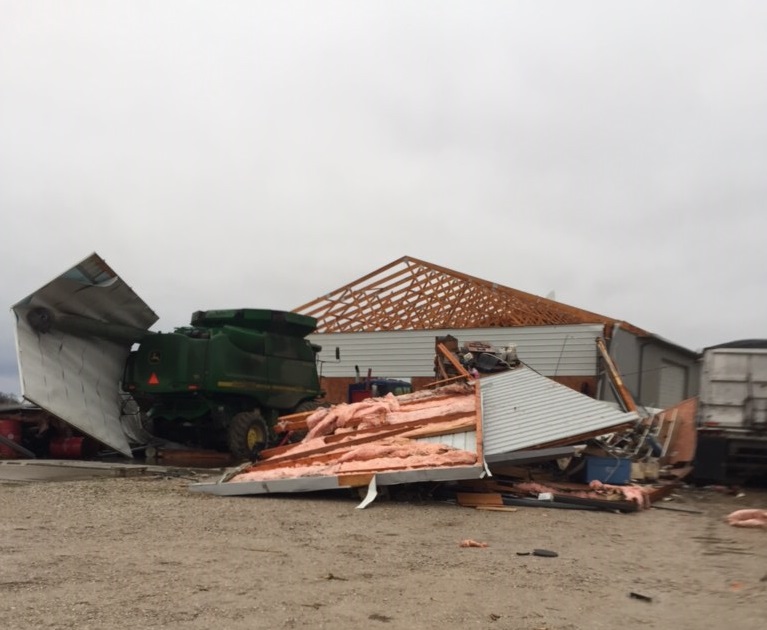

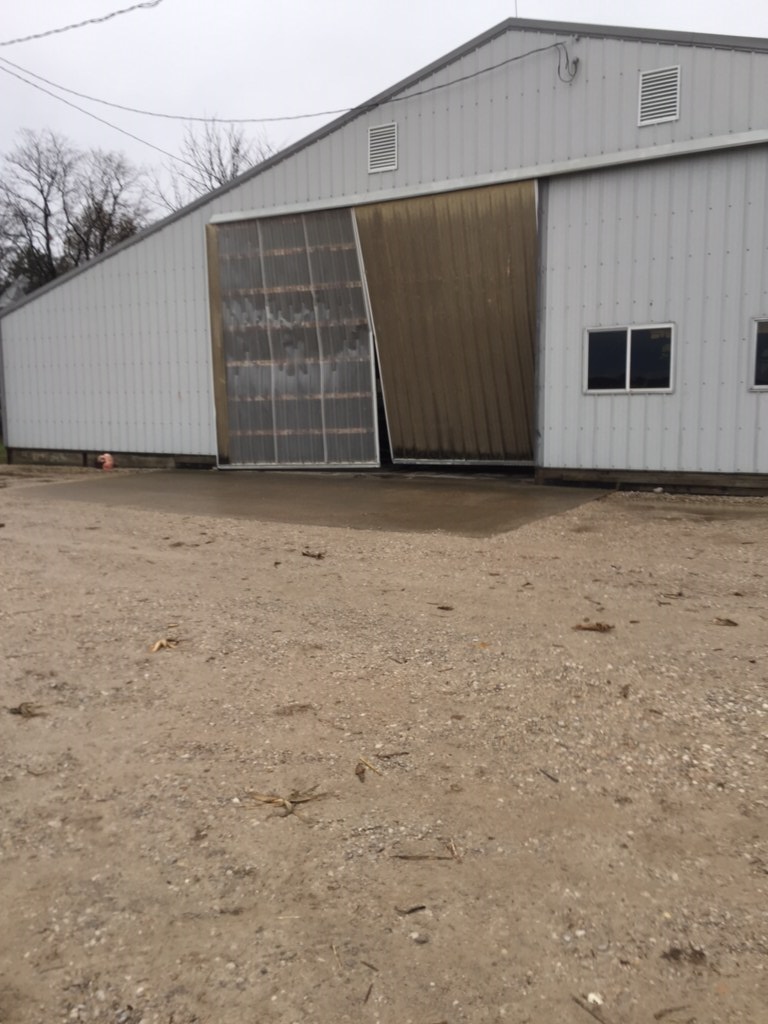

Roof blown off a farm building in northwestern Dubois County, IN.  Image Credit: Gary Fritz	Farm building damage in northwestern Dubois County, IN.  Image Credit: Gary Fritz	Roof blown off a farm building in northwestern Dubois County, IN.  Image Credit: Gary Fritz	Roof blown off a farm building in northwestern Dubois County, IN.  Image Credit: Gary Fritz

Radar:

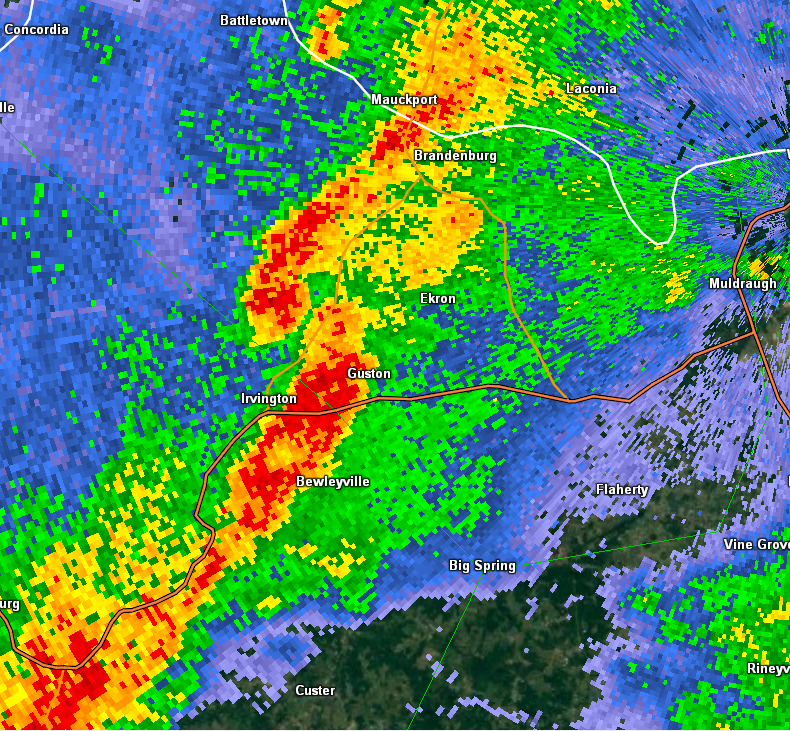

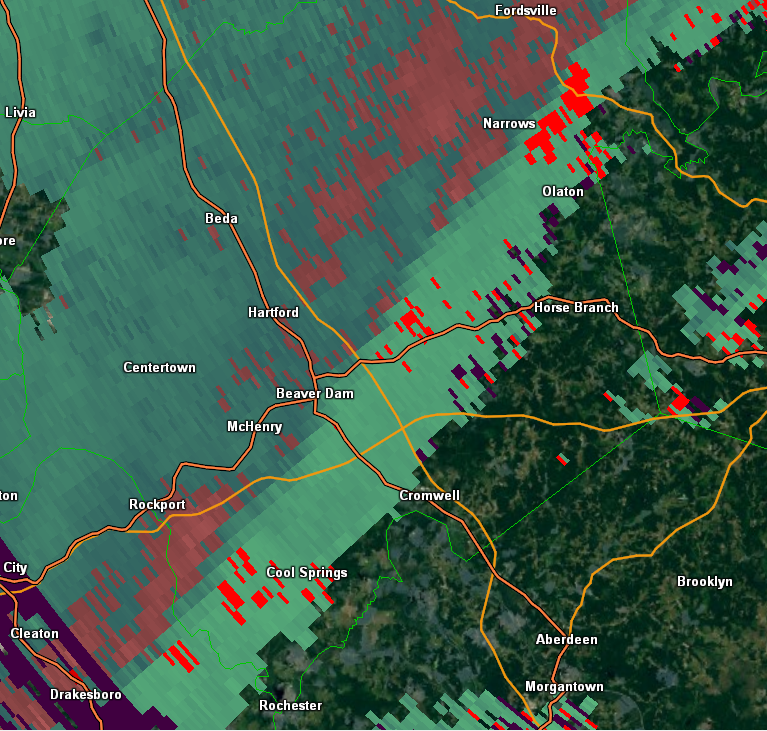

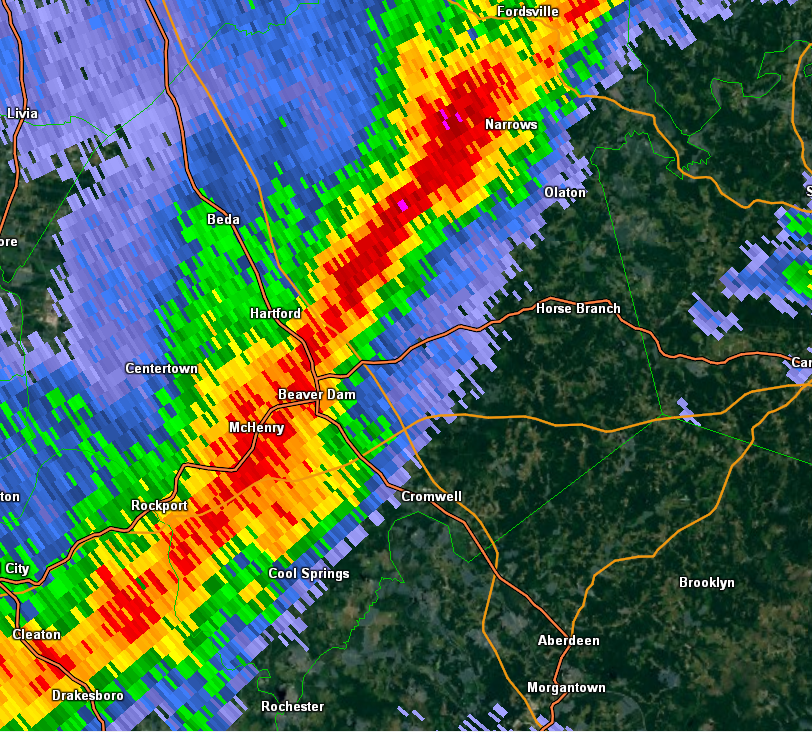

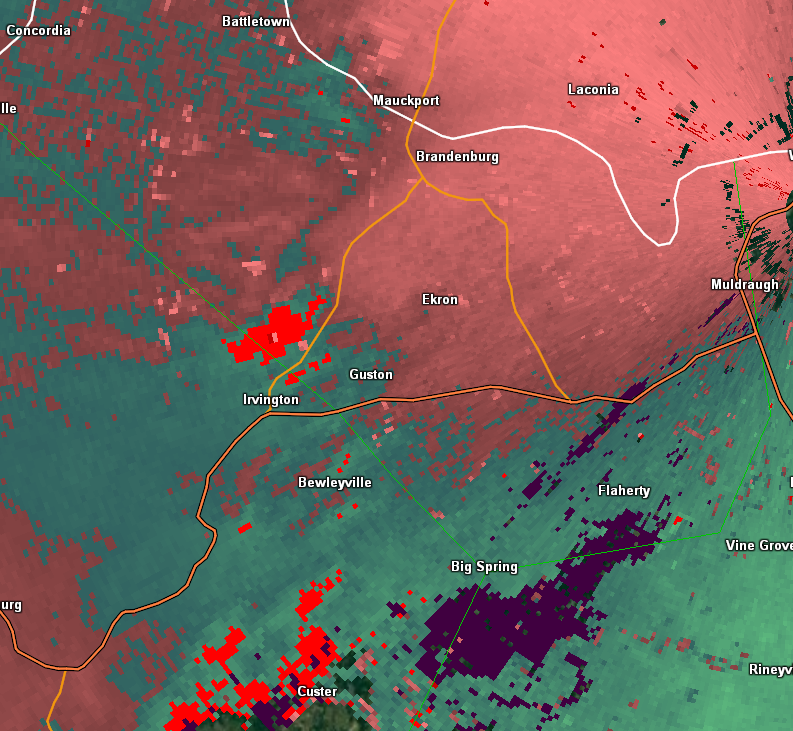

Reflectivity image at the time of the Ohio County tornado.	Storm relative velocity image at the time of the Ohio County tornado.	Reflectivity image at the time of the Meade County tornado.	Storm relative velocity image at the time of the Meade County tornado.

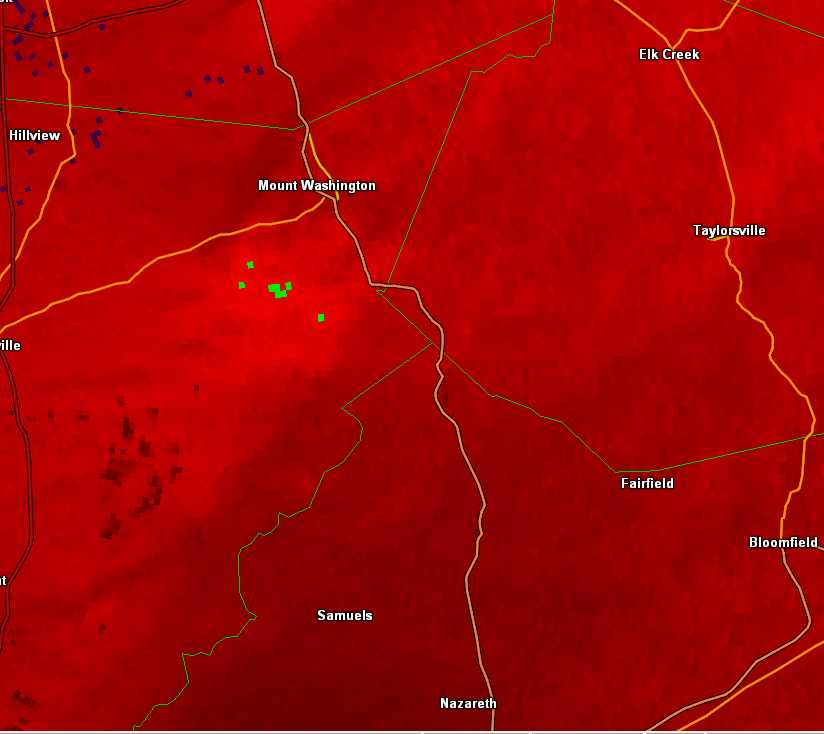

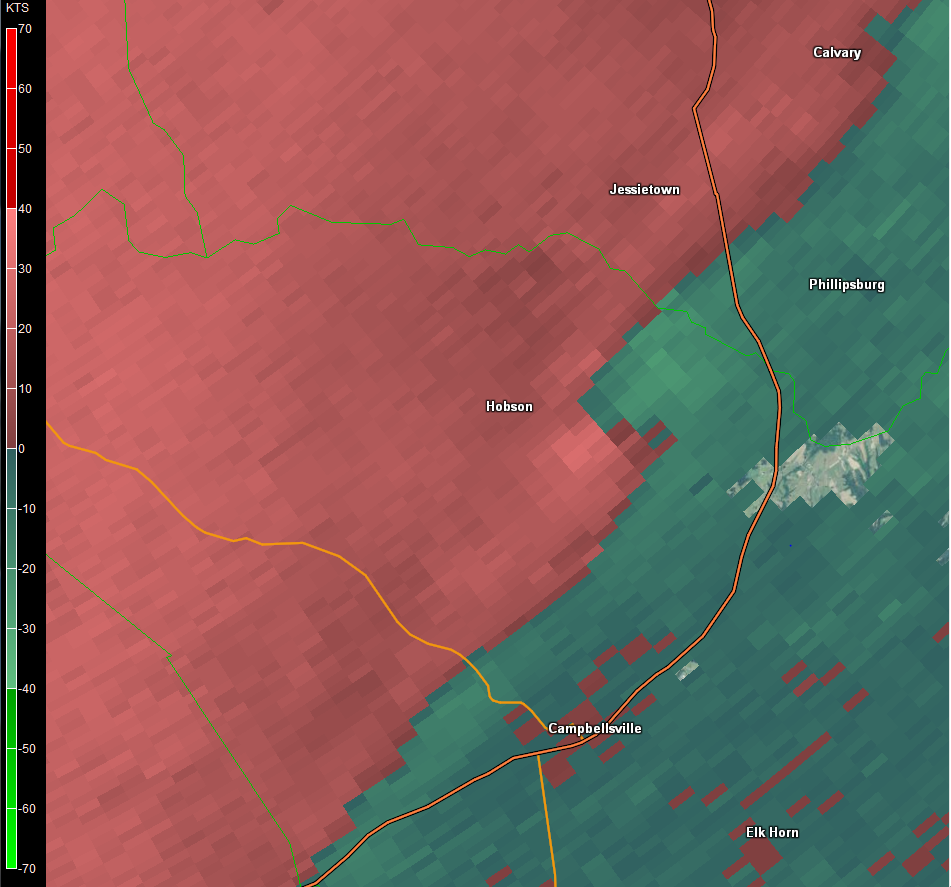

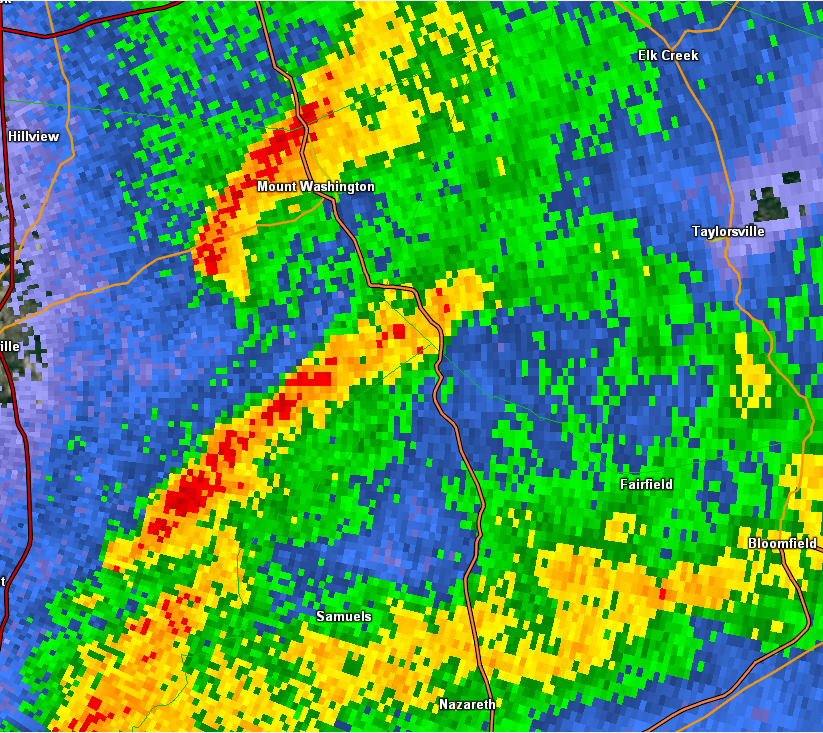

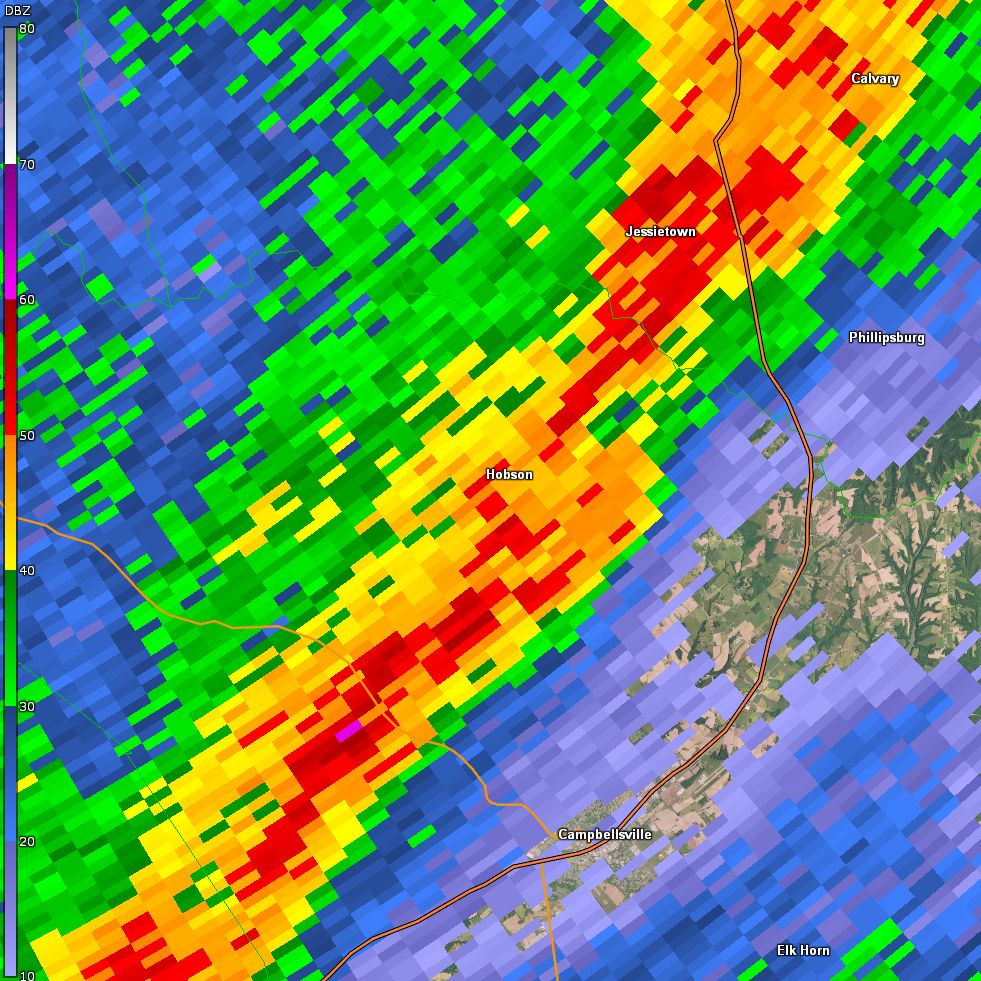

Reflectivity image at the time of the Bullitt County wind damage.   4 panel image at the time of the Taylor County tornado. Upper left (Reflectivity), Upper right (Storm Relative Velocity), Lower left (Spectrum Width), and Lower right (NROT)	Velocity image at the time of the Bullitt County wind damage.	Reflectivity image at the time of the Taylor County tornado	Storm relative velocity image at the time of the Taylor County tornado

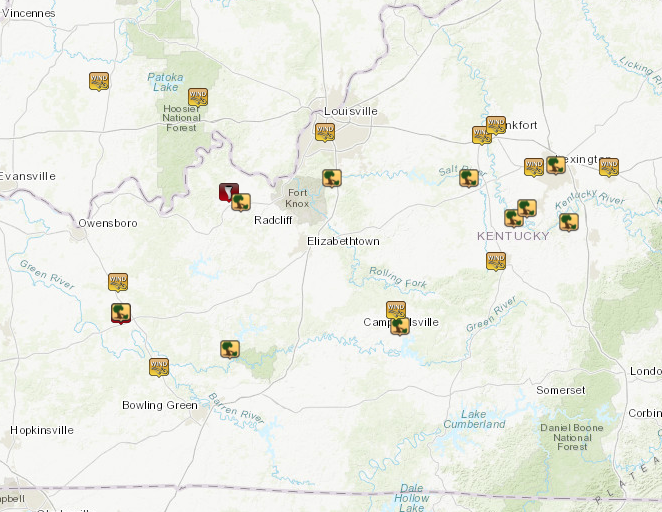

Storm Reports

PRELIMINARY LOCAL STORM REPORT...SUMMARY
NATIONAL WEATHER SERVICE LOUISVILLE KY
421 AM EST MON NOV 20 2017

..TIME...   ...EVENT...      ...CITY LOCATION...     ...LAT.LON...
..DATE...   ....MAG....      ..COUNTY LOCATION..ST.. ...SOURCE....
            ..REMARKS..

0639 PM     TSTM WND DMG     2 SSE VALLEY VIEW       37.80N 84.42W
11/18/2017                   MADISON            KY   BROADCAST MEDIA

            NUMEROUS TREES AND FARM OUTBUILDINGS DAMAGED
            BY THUNDERSTORM WINDS IN THE BALDWIN
            COMMUNITY.

0623 PM     TSTM WND DMG     1 SE WILMORE            37.86N 84.65W
11/18/2017                   JESSAMINE          KY   EMERGENCY MNGR

            MULTIPLE TREES DOWN ON THE WESTERN SIDE OF
            JESSAMINE COUNTY. SOME BLOCKING ROADS.

0621 PM     TSTM WND DMG     HIGH BRIDGE             37.82N 84.72W
11/18/2017                   JESSAMINE          KY   EMERGENCY MNGR

            TREE FELL ON A RESIDENCE IN HIGH BRIDGE.

0605 PM     TSTM WND DMG     CAMPBELLSVILLE          37.35N 85.35W
11/18/2017                   TAYLOR             KY   LAW ENFORCEMENT

            FEW POWER LINES REPORTED DOWN.

0605 PM     TSTM WND GST     HOBSON                  37.42N 85.37W
11/18/2017  M53 MPH          TAYLOR             KY   TRAINED SPOTTER



0559 PM     TSTM WND DMG     5 SW LAWRENCEBURG       37.99N 84.97W
11/18/2017                   ANDERSON           KY   911 CALL CENTER

            DOWNED TREE BLOCKED HIGHWAY 62. RELAYED BY
            TRAINED SPOTTER.

0533 PM     NON-TSTM WND GST 1 NNE ENGLISH           38.34N 86.46W
11/18/2017  M50 MPH          CRAWFORD           IN   TRAINED SPOTTER



0507 PM     TSTM WND DMG     SWEEDEN                 37.25N 86.28W
11/18/2017                   EDMONSON           KY   BROADCAST MEDIA

            AT LEAST 15 TREES DOWN ON A PROPERTY IN
            SWEEDEN.

0505 PM     TSTM WND DMG     SHEPHERDSVILLE          37.99N 85.72W
11/18/2017                   BULLITT            KY   NWS STORM SURVEY

            NWS STORM SURVEY FOUND A SWATH OF
            INTERMITTENT WIND DAMAGE EXTENDING FROM
            SHEPHERDSVILLE, KY TO MOUNT WASHINGTON, KY.
            DAMAGE LENGTH WAS APPROXIMATELY 11.12 MILES
            WITH A WIDTH OF ABOUT 2 MILES. THE DAMAGE
            WAS MAINLY CONFINED TO AREAS ALONG EITHER
            SIDE OF HIGHWAY 44 BETWEEN SHEPHERDSVILLE
            AND MOUNT WASHINGTON, KY. NUMEROUS TREES
            TREES WERE DOWNED AND SEVERAL BUILDINGS
            RECEIVED CARPORT AND SHINGLE DAMAGE.

0505 PM     TSTM WND GST     3 SSW LOUISVILLE        38.19N 85.76W
11/18/2017  M48 MPH          JEFFERSON          KY   ASOS

            REPORTED AT LOUISVILLE INTERNATIONAL
            AIRPORT.

0450 PM     TSTM WND GST     2 WSW WOODBURY          37.17N 86.67W
11/18/2017  M53 MPH          BUTLER             KY   MESONET



0435 PM     TSTM WND DMG     GUSTON                  37.89N 86.22W
11/18/2017                   MEADE              KY   TRAINED SPOTTER

            HOME DAMAGED.. TREES DOWN AND RV TURNED
            OVER.

0627 PM     TSTM WND DMG     2 WNW LEXINGTON         38.05N 84.49W
11/18/2017                   FAYETTE            KY   BROADCAST MEDIA

            POWER POLE DOWN AND LARGE TREE ON CAR.

0432 PM     TORNADO          4 N IRVINGTON           37.93N 86.29W
11/18/2017                   MEADE              KY   NWS STORM SURVEY

            *** 1 INJ *** THE TORNADO TOUCHED DOWN JUST
            INSIDE THE BRECKINRIDGE-MEADE COUNTY LINE
            NORTH OF IRVINGTON. IT PUSHED A LARGE
            TOBACCO BARN 15 FEET EASTWARD, TORE OFF ITS
            ROOF, AND COLLAPSED SEVERAL WALLS. DEBRIS
            FROM THE BARN WAS SCATTERED OVER A HALF MILE
            DOWNWIND. THE TORNADO MOVED EAST-NORTHEAST,
            SKIPPING ALONG A WOODED AREA WHERE SEVERAL
            TREES WERE SNAPPED OR UPROOTED, THEN HIT A
            MOBILE HOME ON FACKLER ROAD, ROLLING THE
            ANCHORED UNIT SEVERAL TIMES, DESTROYING THE
            HOME. THE OWNER SUSTAINED ONLY MINOR
            INJURIES AS HE ROLLED OVER WITH HIS HOUSE,
            CRAWLING OUT OF A HOLE AFTER IT SETTLED. A
            GARAGE ON THE PROPERTY WAS ALSO DESTROYED.
            THE TORNADO CONTINUED SKIPPING ALONG THE
            NORTHWEST SIDE OF SANDY HILL RD, DAMAGING
            OUTBUILDINGS ON ANOTHER FARM, BEFORE

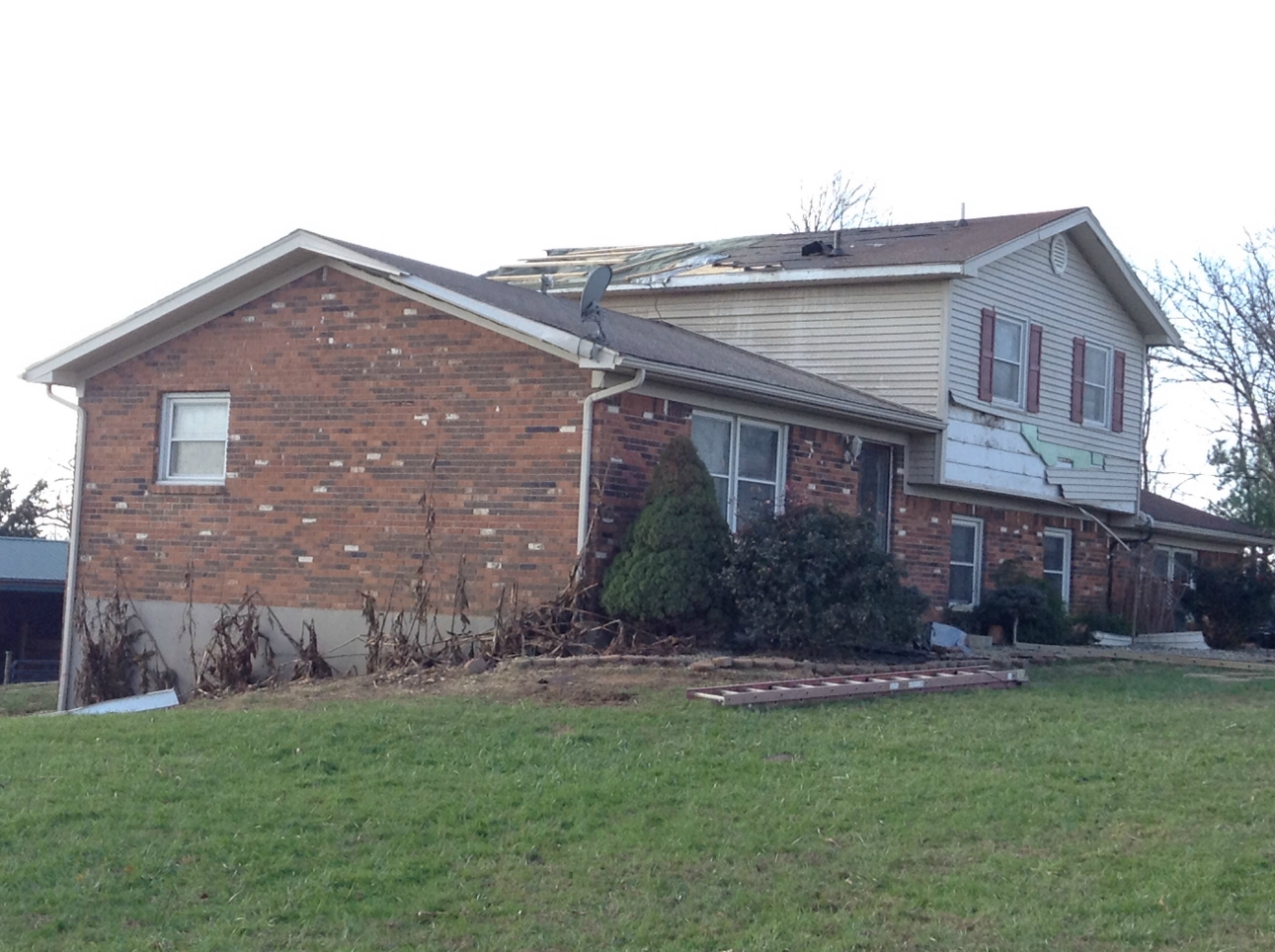

            CROSSING KY HIGHWAY 261 AT GUSTON RD. A
            SPLIT LEVEL HOME ON GUSTON RD HAD PART OF
            ITS ROOF REMOVED, WITH INSULATION SPATTERED
            ON THE LEE SIDE OF THE HOME. AN OCCUPANT OF
            THE HOME REPORTED HE WAS DESCENDING THE
            STAIRS AS THE ROOF WAS TORN OFF, AND WAS
            BRIEFLY DRAWN UP THE STAIRS AS IT OCCURRED.
            DEBRIS FROM THE SPLIT LEVEL HOME WAS DROPPED
            ACROSS THE ROAD, WHERE A FEW MORE TREES WERE
            SNAPPED AND UPROOTED. THE TORNADO THEN
            FLATTENED A FENCE AND PEELED A SECTION OF
            SHEET METAL ON AN OUTBUILDING BEFORE
            LIFTING. THE NWS THANKS MEADE COUNTY EMA AND
            REMOTE AERIAL FOR THEIR ASSISTANCE IN THIS
            DAMAGE SURVEY.

0426 PM     TSTM WND GST     4 NE BEDA               37.54N 86.90W
11/18/2017  E60 MPH          OHIO               KY   TRAINED SPOTTER



0425 PM     TSTM WND DMG     BEAVER DAM              37.41N 86.88W
11/18/2017                   OHIO               KY   EMERGENCY MNGR

            AT LEAST 20 HOMES WITH DAMAGE AND TREES
            UPROOTED.

0425 PM     TSTM WND DMG     BEAVER DAM              37.41N 86.88W
11/18/2017                   OHIO               KY   EMERGENCY MNGR

            TREES AND POWERLINES DOWN.

0420 PM     TORNADO          1 S BEAVER DAM          37.40N 86.88W
11/18/2017                   OHIO               KY   NWS STORM SURVEY

            *** 1 INJ *** NWS STORM SURVEY TEAM
            DETERMINED THAT AN EF-1 TORNADO WITH WINDS
            OF 95 TO 100 MPH TOUCHED DOWN ABOUT ONE HALF
            MILE WSW OF BEAVER DAM ALONG US 62 AND
            GOSHEN CHURCH ROAD AT 3:20 PM CST. THE
            TORNADO MOVED ESE AND DAMAGED A HOME ON MINE
            FORK ROAD. A RESIDENT SUFFERED A MINOR HEAD
            INJURY IN THEIR SHED AS THE STORM MOVED
            THROUGH. THE MOST INTENSE DAMAGE WAS IN THE
            HILL AND MULBERRY STREET AREA WHERE NUMEROUS
            TREES, HOMES, AND OUTBUILDINGS WERE DAMAGED.
            THE TORNADO LIFTED NEAR BRUCE SCHOOL RD AT
            3:22 PM CST WHICH IS ABOUT ONE HALF MILE ESE
            OF BEAVER DAM.

0333 PM     TSTM WND GST     IRELAND                 38.41N 87.00W
11/18/2017  M56 MPH          DUBOIS             IN   EMERGENCY MNGR



0325 PM     NON-TSTM WND GST 3 WSW DANVILLE          37.63N 84.82W
11/18/2017  M51 MPH          BOYLE              KY   MESONET

            RECORDED AT KENTUCKY MESONET STATION.

0250 PM     NON-TSTM WND GST 3 NNW WINCHESTER        38.04N 84.20W
11/18/2017  M50 MPH          CLARK              KY   MESONET

            RECORDED AT KENTUCKY MESONET SITE.

0230 PM     NON-TSTM WND GST 1 WNW FORKS OF ELKHORN  38.22N 84.82W
11/18/2017  M55 MPH          FRANKLIN           KY   MESONET

            MESONET STATION D5536, FORKS OF ELKHORN.

0142 PM     NON-TSTM WND GST 7 E VERSAILLES          38.04N 84.61W
11/18/2017  M51 MPH          FAYETTE            KY   ASOS

            ASOS STATION LEX, LEXINGTON BLUE GRASS
            AIRPORT.

0124 PM     NON-TSTM WND GST 2 WSW FRANKFORT         38.18N 84.90W
11/18/2017  M54 MPH          FRANKLIN           KY   ASOS

            ASOS STATION FFT, CAPITAL CITY AIRPORT.
