Overview
|
Strong thunderstorms developed along and ahead of a warm front that lifted north into eastern Iowa and northern Illinois Wednesday afternoon and evening. Several funnel clouds were reported with these storms, and 3 brief tornadoes touched down in Bureau county in Illinois, with little to no damage. Additional tornadoes developed further east in Lee and La Salle counties in northern Illinois. |
Tornadoes:
|

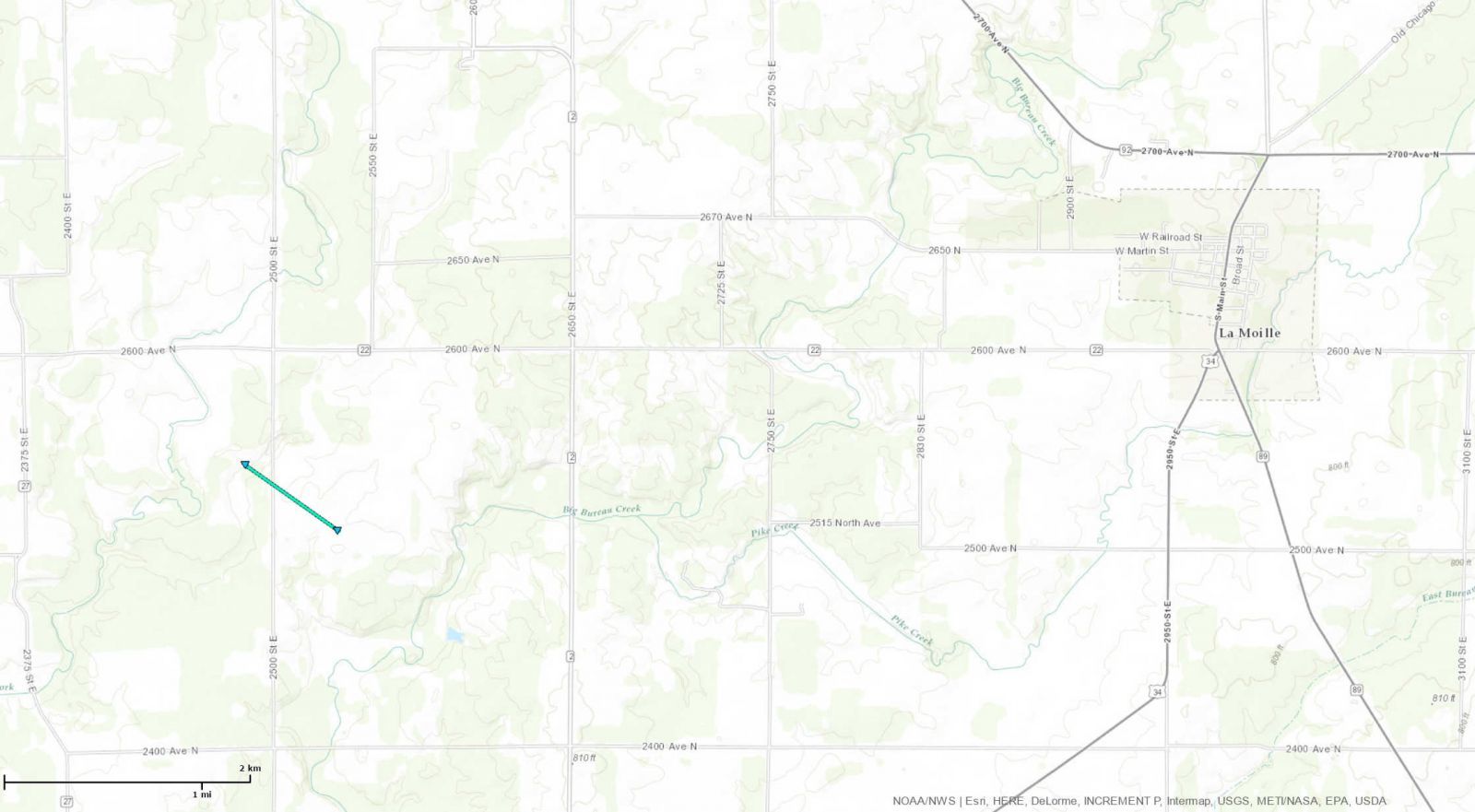

Tornado - La Moille, IL
Track Map
Downloadable KMZ File |
||||||||||||||
|
|
Tornado - New Bedford/Manlius, IL
Track Map
Downloadable KMZ File |
||||||||||||||
|
|

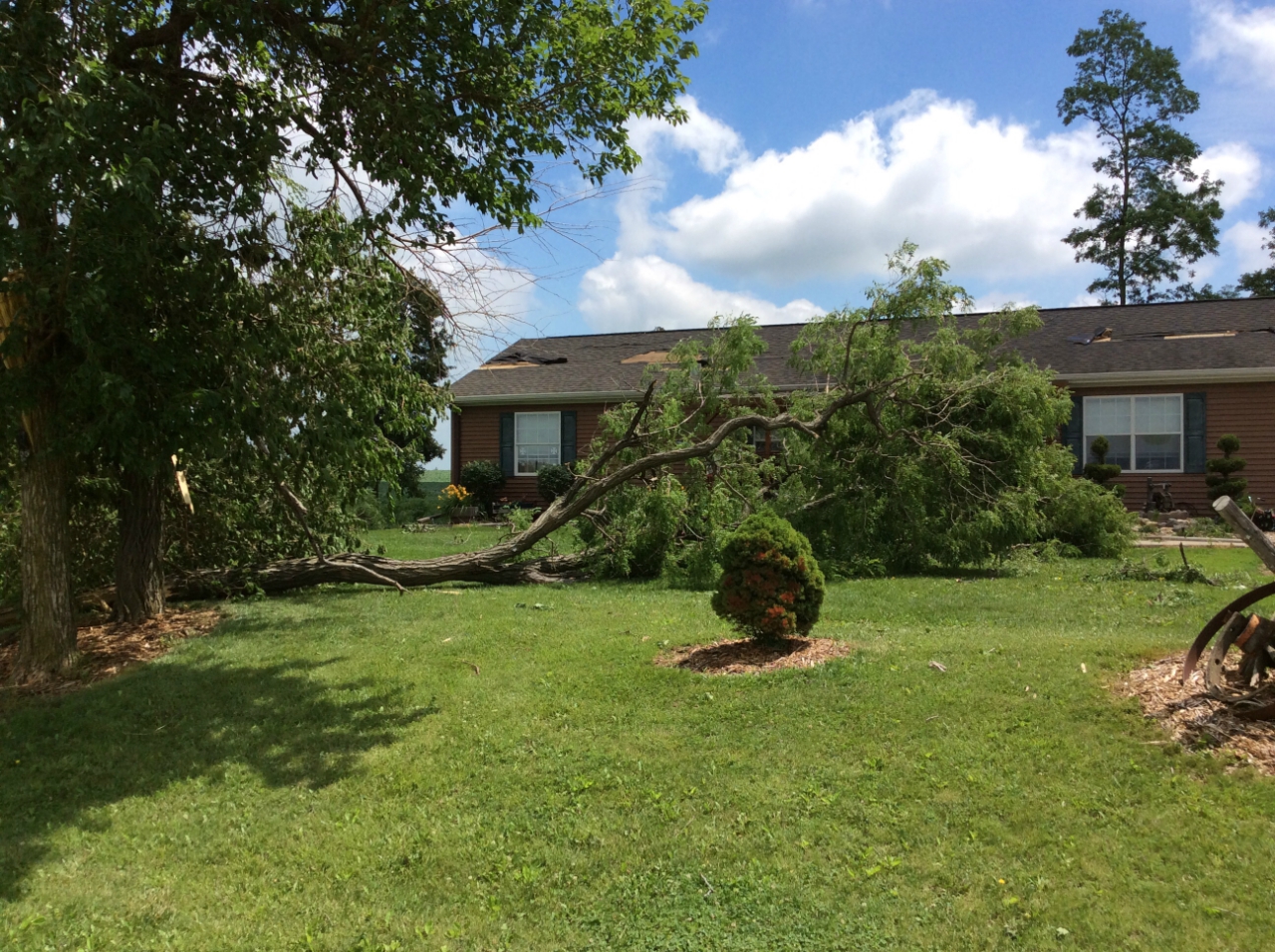

Tornado - Malden, IL
Track Map
Downloadable KMZ File |
||||||||||||||
|
The Enhanced Fujita (EF) Scale classifies tornadoes into the following categories:
| EF0 Weak 65-85 mph |
EF1 Moderate 86-110 mph |
EF2 Significant 111-135 mph |
EF3 Severe 136-165 mph |
EF4 Extreme 166-200 mph |
EF5 Catastrophic 200+ mph |
 |
|||||
Storm Reports

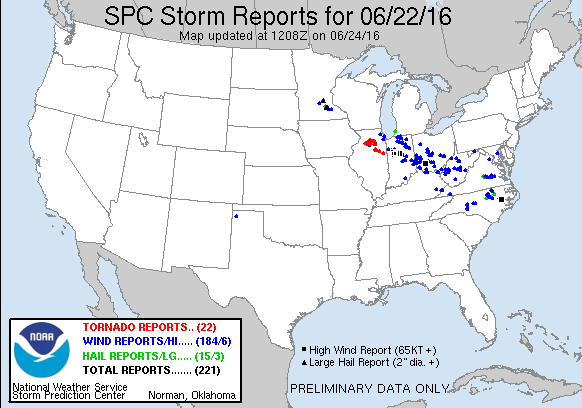

| Interactive Loop | SPC Storm Reports June 22, 2016 |
 |
 |
.jpg)
.jpg)
PRELIMINARY LOCAL STORM REPORT...SUMMARY
NATIONAL WEATHER SERVICE QUAD CITIES IA IL
1241 AM CDT THU JUN 23 2016
..TIME... ...EVENT... ...CITY LOCATION... ...LAT.LON...
..DATE... ....MAG.... ..COUNTY LOCATION..ST.. ...SOURCE....
..REMARKS..
0733 PM FUNNEL CLOUD 1 ESE OHIO 41.55N 89.44W
06/22/2016 BUREAU IL PUBLIC
0753 PM FUNNEL CLOUD HOOPPOLE 41.52N 89.91W
06/22/2016 HENRY IL PUBLIC
2 FUNNELS EAST OF HOOPLE APPEAR HEADED TOWARD THOMAS
0755 PM TORNADO LA MOILLE 41.53N 89.28W
06/22/2016 BUREAU IL TRAINED SPOTTER
TORNADO BRIEFLY TOUCHED DOWN AND THEN LIFTED
0807 PM TORNADO 3 N MANLIUS 41.50N 89.67W
06/22/2016 BUREAU IL TRAINED SPOTTER
BRIEF TORNADO - FUNNEL HAS LIFTED
0816 PM HEAVY RAIN ENE HOOPPOLE 41.52N 89.91W
06/22/2016 E0.00 INCH HENRY IL TRAINED SPOTTER
VERY HEAVY RAIN OVER THE PAST 20 MINUTES. PONDING OF
WATER ON STREETS AND ON HIGHWAY 78.
0823 PM FUNNEL CLOUD NW PRINCETON 41.38N 89.47W
06/22/2016 BUREAU IL TRAINED SPOTTER
CORRECTED FOR COUNTY - SPOTTER IS UNABLE TO SEE WHETHER
THE FUNNEL IS TOUCHING THE GROUND
0829 PM FUNNEL CLOUD PRINCETON 41.38N 89.47W
06/22/2016 BUREAU IL FIRE DEPT/RESCUE
FUNNEL OBSERVED NEAR TRUCK STOP
0832 PM TSTM WND DMG 1 NE PRINCETON 41.39N 89.45W
06/22/2016 BUREAU IL LAW ENFORCEMENT
SEMI ON ITS SIDE BETWEEN PRINCETON AND DOVER
0834 PM FUNNEL CLOUD 4 NE PRINCETON 41.42N 89.41W
06/22/2016 BUREAU IL LAW ENFORCEMENT
CORRECTED FOR COUNTY

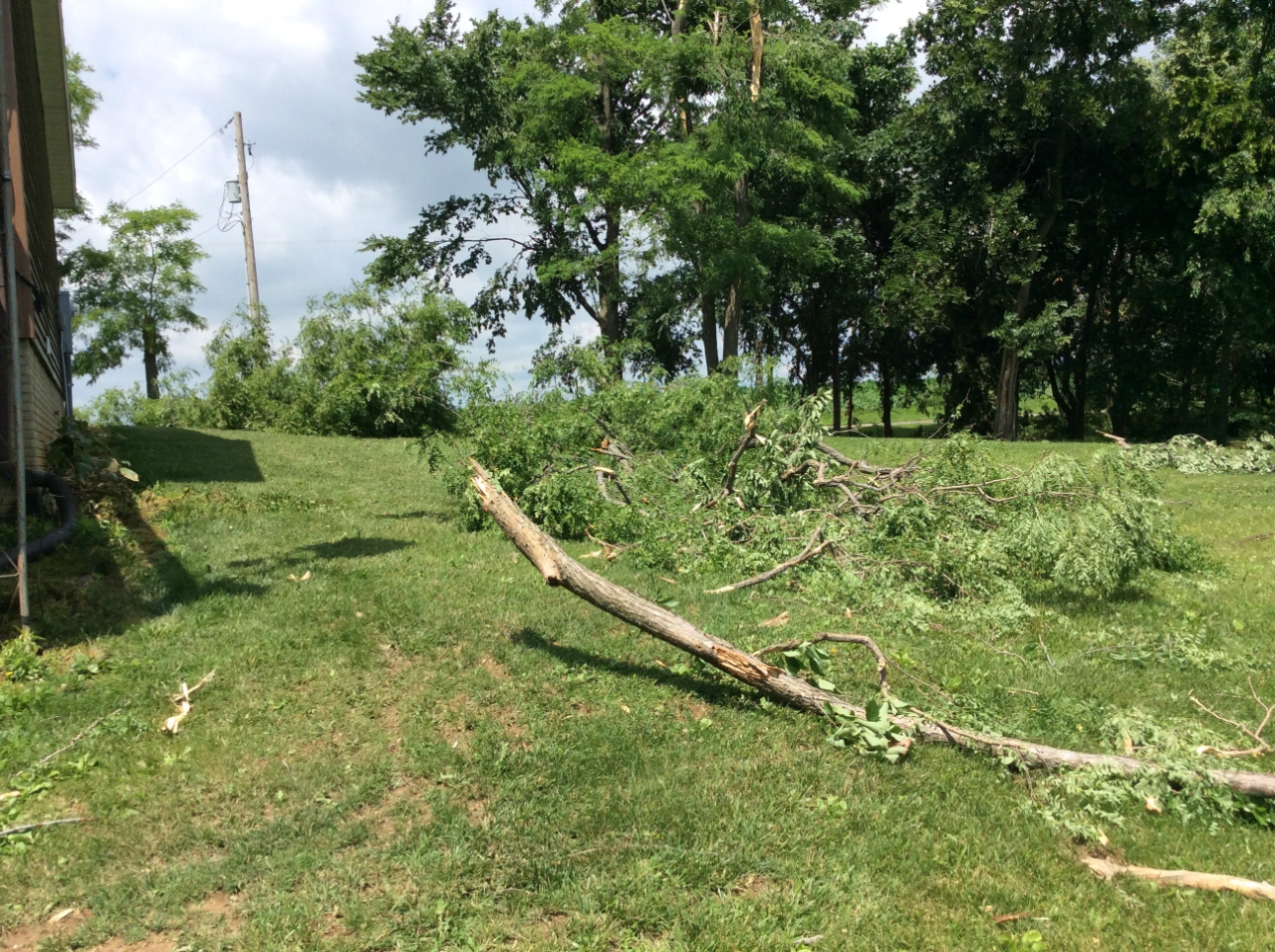

0836 PM TSTM WND DMG 1 S MALDEN 41.41N 89.37W
06/22/2016 BUREAU IL EMERGENCY MNGR
SEVERAL MATURE TREES SNAPPED OFF 20 FEET OFF THE GROUND
AT RESIDENCE. SHINGLES PEALED OFF IN SPOTS ON BOTH SIDES
OF THE ROOF. NEARBY CORN IS FLATTENED. TIME ESTIMATED BY
RADAR.
0836 PM TSTM WND DMG MALDEN 41.42N 89.37W
06/22/2016 BUREAU IL PUBLIC
SEVERAL LARGE TREES DOWN IN TOWN AND MINOR ROOF DAMAGE TO
1 RESIDENCE...TIME ESTIMATED FROM RADAR.
0905 PM TSTM WND DMG GRANVILLE 41.26N 89.23W
06/22/2016 PUTNAM IL EMERGENCY MNGR
SEVERAL POWER LINES AND TREES DOWN IN TOWN. TIME
ESTIMATED FROM RADAR.
Rain Reports
 |
 |
 |

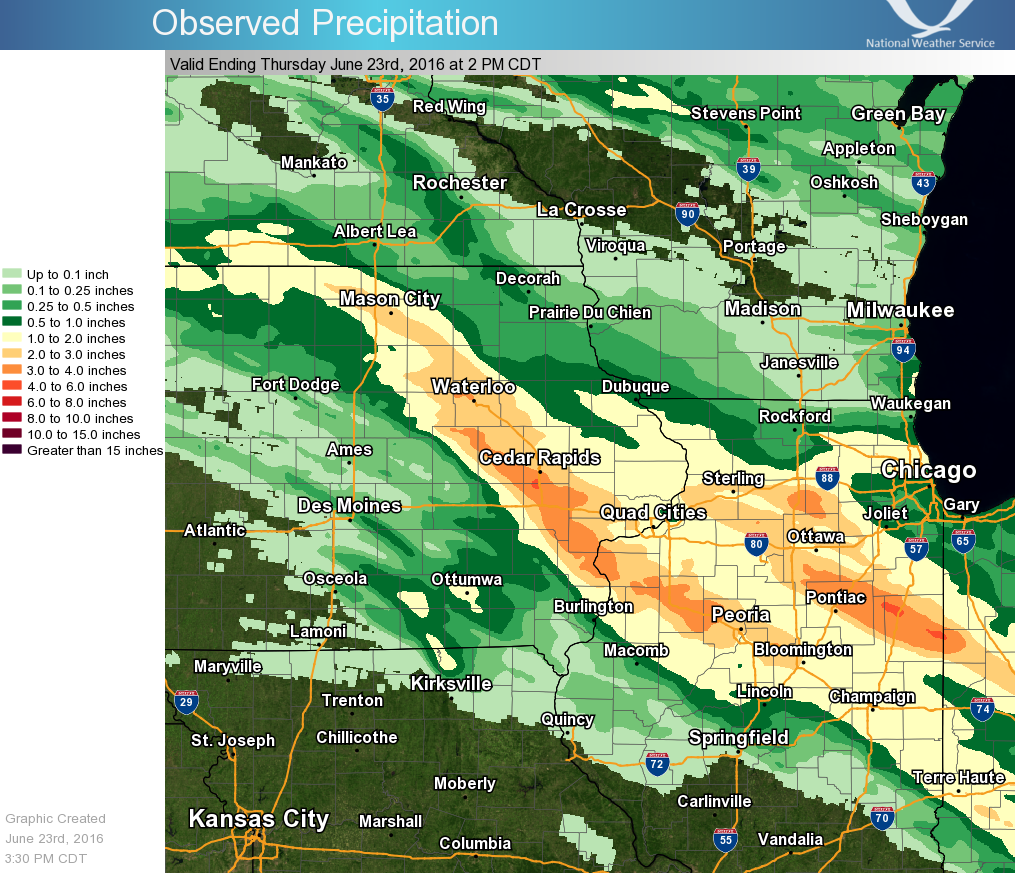

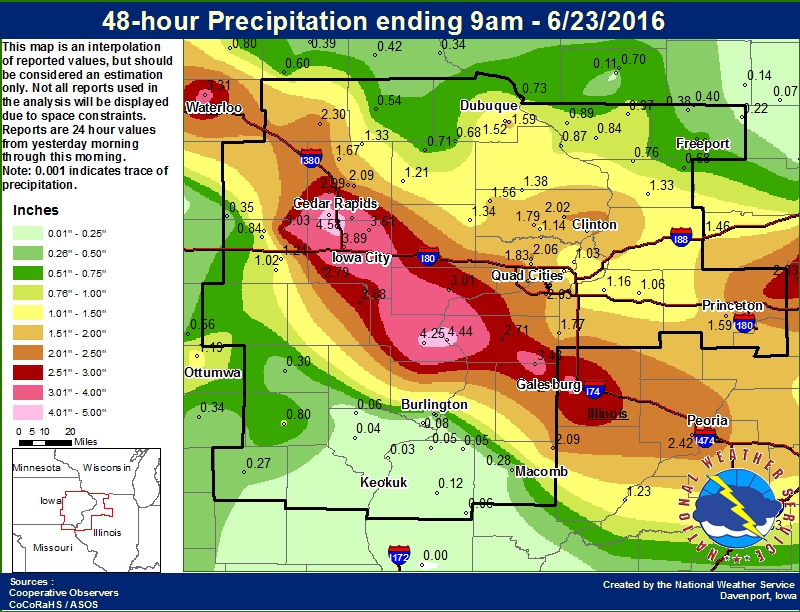

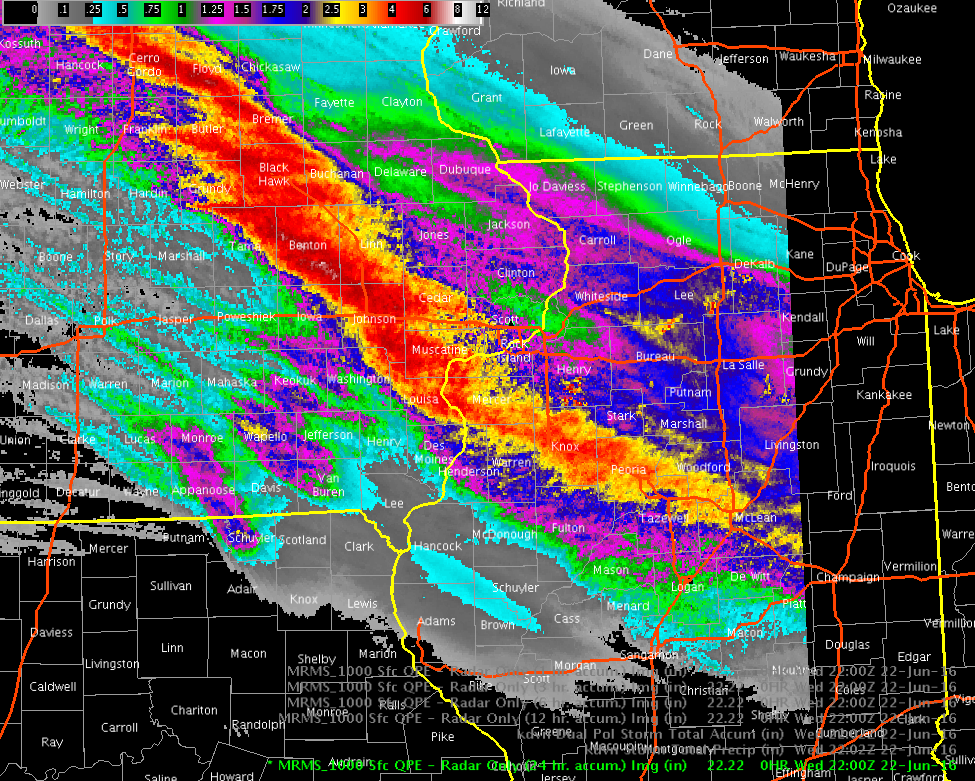

| Figure 1: Local 48-hr Rainfall | Figure 2: Regional 48-hr Rainfall | Figure 3: MRMS Estimated Rainfall |
Public Information Statement National Weather Service Quad Cities IA IL 321 PM CDT Wed Jun 22 2016
...Highest 24 hr Rainfall Reports...
Observations are collected from a variety of sources with varying
equipment and exposures. Not all data listed are considered official.
Location Amount Time/Date Provider
North Liberty 5.65 in 0700 AM 06/22 COCORAHS
Swisher 4.89 in 0725 AM 06/22 COCORAHS
Swisher 4.79 in 0700 AM 06/22 COOP
1 E East Amana 4.55 in 1000 AM 06/22 COCORAHS
1 NNE North Liberty 4.50 in 0314 PM 06/22 CWOP
Cedar Rapids Arpt 4.48 in 0652 AM 06/22 ASOS
Cedar Rvr At Conesville 4.39 in 0300 PM 06/22 USGS
Garrison 4.34 in 0307 PM 06/22 CWOP
Pope Creek Near Keithsburg 4.16 in 0230 PM 06/22 USGS
Edwards Rvr At New Boston 4.09 in 0230 PM 06/22 USARMY-COE
Rapid Crk At Iowa City 4.05 in 0300 PM 06/22 USGS
New Boston L/d 17 3.97 in 0240 PM 06/22 USARMY-COE
3 E Iowa City 3.93 in 0311 PM 06/22 CWOP
1 WNW Oakdale 3.71 in 0700 AM 06/22 COCORAHS
Henderson Crk At Oquawka 3.67 in 0230 PM 06/22 USGS
Coralville 3.64 in 0300 PM 06/22 HADS
Alexis 3.40 in 0745 AM 06/22 COOP
Solon 0.3 ESE 3.34 in 0700 AM 06/22 COCORAHS
Iowa City Arpt 3.20 in 0652 AM 06/22 ASOS
Iowa Rvr At Iowa City 3.20 in 0300 PM 06/22 USGS
Cedar Rvr At Cedar Bluff 3.16 in 0300 PM 06/22 USGS
Wapsi Rvr At Oxford Jct 3.09 in 0245 PM 06/22 USGS
West Amana 3.03 in 0700 AM 06/22 COCORAHS
2 N Muscatine 2.94 in 0700 AM 06/22 COOP
Coralville Dam 2.91 in 0300 PM 06/22 USARMY-COE
1 NNW Williamstown 2.75 in 0700 AM 06/22 COCORAHS
1 WNW Oakville 2.73 in 0300 PM 06/22 USGS
4 N Haskins 2.68 in 0700 AM 06/22 COCORAHS
Cedar Rvr At Vinton 2.64 in 0215 PM 06/22 USGS
Aledo 2.63 in 0700 AM 06/22 COOP
Hoover Creak Near West Branc 2.63 in 0245 PM 06/22 USGS
Iowa Rvr At Columbus Jct 2.61 in 0300 PM 06/22 USARMY-COE
Vinton 2.54 in 0314 PM 06/22 CWOP
Duck Crk Near West Lake 2.52 in 0215 PM 06/22 USGS
Ms Rvr At Muscatine 2.51 in 0215 PM 06/22 GOES
Cedar Rvr Near Palo 2.50 in 0215 PM 06/22 USGS
Illinois City L/d 16 2.42 in 0300 PM 06/22 COOP
2 NE Cedar Rapids 2.38 in 0550 AM 06/22 COCORAHS
1 ENE Oak Grove 2.27 in 0313 PM 06/22 CWOP
Midway 2.21 in 0305 PM 06/22 CWOP
Iowa Rvr At Wapello 2.16 in 0300 PM 06/22 USGS
1 WNW Van Horne 2.04 in 0303 PM 06/22 CWOP
1 ENE Marion 2.04 in 0301 PM 06/22 CWOP
Cedar Rapids 1.99 in 0310 PM 06/22 CWOP
Rock Island L/d 15 1.96 in 0300 PM 06/22 COOP
Indian Crk At Marion 1.94 in 0300 PM 06/22 USGS
1 E Hiawatha 1.92 in 0311 PM 06/22 CWOP
Urbana 1.91 in 0301 PM 06/22 CWOP
Independence 1.82 in 0310 PM 06/22 CWOP
Roseville 1.81 in 0700 AM 06/22 COCORAHS
1 W Riverdale 1.75 in 0304 PM 06/22 CWOP
2 ESE Davenport 1.73 in 0313 PM 06/22 CWOP
1 WSW Davenport 1.73 in 0648 AM 06/22 COCORAHS
Center Point 1.70 in 0600 AM 06/22 COCORAHS
Vinton Arpt 1.68 in 0655 AM 06/22 AWOS
Wapsi Rvr At Independence 1.67 in 0230 PM 06/22 USGS
1 E Kewanee 1.63 in 0700 AM 06/22 COOP
Rock Rvr At Moline 1.62 in 0230 PM 06/22 USARMY-COE
Gladstone L/d 18 1.60 in 0300 PM 06/22 COOP
Prairie City 1.55 in 0600 AM 06/22 COOP
1 NW Marion 1.48 in 0700 AM 06/22 COCORAHS
Quad City Intl Arpt 1.48 in 0652 AM 06/22 ASOS
1 NE Marion 1.47 in 0700 AM 06/22 COCORAHS
Moline 1.47 in 0700 AM 06/22 COCORAHS
Stronghurst 1.45 in 0313 PM 06/22 CWOP
1 NNE Olin 1.42 in 0305 PM 06/22 CWOP
Walnut 1.42 in 0302 PM 06/22 CWOP
Buffalo Crk At Prairieburg 1.38 in 0230 PM 06/22 USGS
Bellevue L/d 12 1.32 in 0300 PM 06/22 USARMY-COE
Eldridge 1.32 in 0800 AM 06/22 COCORAHS
Raritan 1.25 in 0314 PM 06/22 CWOP
3 NNE Lafayette 1.25 in 0620 AM 06/22 COCORAHS
Williamsburg 1.24 in 0700 AM 06/22 COOP
Davenport Arpt 1.23 in 0652 AM 06/22 ASOS
Wapsi Rvr At Oxford Jct 1.20 in 0230 PM 06/22 USGS
N Fork Maquoketa Rvr At Dyer 1.19 in 0300 PM 06/22 USGS
2 SSE Osborn 1.17 in 0315 PM 06/22 CWOP
Fulton L/d 13 1.17 in 0300 PM 06/22 USARMY-COE
Davenport Nws 1.12 in 0700 AM 06/22 COOP
Le Claire L/d 14 1.11 in 0300 PM 06/22 COOP
Green Rvr At Geneseo 1.10 in 0230 PM 06/22 USGS
Riverdale 1.10 in 0630 AM 06/22 COCORAHS
Williamsburg 1.09 in 0310 PM 06/22 CWOP
Aledo 1.09 in 1156 AM 06/22 COCORAHS
Iowa Rvr At Marengo 1.02 in 0300 PM 06/22 USGS
North English 1.00 in 0700 AM 06/22 COOP
1 SSE Julien 0.99 in 0310 PM 06/22 CWOP
Wapsi Rvr At Dewitt 0.98 in 0230 PM 06/22 USGS
Unionville 0.98 in 0311 PM 06/22 CWOP
Kewanee Municipal 0.93 in 0249 PM 06/22 CWOP
Parnell 0.92 in 0428 AM 06/22 COCORAHS
Fulton 0.88 in 1045 AM 06/22 COOP
1 SW Coleta 0.83 in 0830 AM 06/22 COCORAHS
1 NE Sterling 0.81 in 0314 PM 06/22 CWOP
2 SSW Malvern 0.81 in 0700 AM 06/22 COCORAHS
1 ESE Dubuque 0.78 in 0311 PM 06/22 CWOP
Apple River State Park 0.77 in 0630 AM 06/22 COOP
Mount Carroll 0.77 in 0307 PM 06/22 CWOP
Big Bureau Crk Near Princeto 0.76 in 0245 PM 06/22 USGS
Galena Territory 0.75 in 0303 PM 06/22 CWOP
Coggon 0.74 in 0630 AM 06/22 COOP
Skunk Rvr At Merrimac 0.74 in 0230 PM 06/22 USGS
Skunk Rvr At Sigourney 0.74 in 0230 PM 06/22 USGS
1 E Dubuque 0.71 in 0312 PM 06/22 CWOP
Galena 0.71 in 0700 AM 06/22 COOP
1 SE Princeton 0.71 in 0700 AM 06/22 COCORAHS
Princeton 0.71 in 0700 AM 06/22 COOP
Elizabeth 0.70 in 0630 AM 06/22 COOP
Rock Rvr Near Joslin 0.68 in 0230 PM 06/22 USGS
Stanley 0.68 in 1000 AM 06/22 COOP
Dubuque #3 0.67 in 0700 AM 06/22 COOP
Dubuque Arpt 0.66 in 0653 AM 06/22 ASOS
Camanche 1.2 W 0.66 in 0700 AM 06/22 COCORAHS
Lowden 0.65 in 0700 AM 06/22 COOP
2 WSW Chadwick 0.64 in 0700 AM 06/22 COCORAHS
2 NE Atkinson 0.64 in 0800 AM 06/22 COCORAHS
1 E Dubuque 0.63 in 0311 PM 06/22 CWOP
Ms Rvr At Fairport 0.61 in 0230 PM 06/22 USARMY-COE
Fulton 0.60 in 0600 AM 06/22 COCORAHS
Big Bear Creek At Ladora 0.59 in 0300 PM 06/22 USGS
Williamsburg 0.58 in 0312 PM 06/22 CWOP
Clinton Arpt 0.57 in 0656 AM 06/22 AWOS
Washington 0.56 in 0700 AM 06/22 COOP
1 ESE Edmore 0.55 in 0300 PM 06/22 HADS
1 W Port Byron 0.55 in 0630 AM 06/22 COCORAHS
English Rvr Near Parnell 0.55 in 0300 PM 06/22 USGS
Ms Rvr At Keithsburg 0.54 in 0230 PM 06/22 USARMY-COE
3 SSW Anamosa 0.53 in 0600 AM 06/22 COOP
De Witt 0.52 in 0800 AM 06/22 COOP
Maquoketa River At Mancheste 0.51 in 0215 PM 06/22 USGS
Washington Arpt 0.45 in 0655 AM 06/22 AWOS
Cascade 0.42 in 0700 AM 06/22 COOP
Wapsi Rvr At Anamosa 0.40 in 0215 PM 06/22 USGS
Fairfield Arpt 0.39 in 0655 AM 06/22 AWOS
3 SSE Sciota 0.39 in 0630 AM 06/22 COCORAHS
Monticello 0.38 in 0716 AM 06/22 COOP
Belle Plaine 0.35 in 0700 AM 06/22 COOP
2 S Beckwith 0.35 in 0700 AM 06/22 COCORAHS
Burlington 2s 0.33 in 0700 AM 06/22 COOP
1 NW Geneseo 0.33 in 0500 AM 06/22 COCORAHS
Manchester 0.33 in 0700 AM 06/22 COOP
Burlington Arpt 0.30 in 0653 AM 06/22 ASOS
Fairfield 0.30 in 0800 AM 06/22 COOP
Monticello Arpt 0.30 in 0655 AM 06/22 AWOS
Ms Rvr At Burlington 0.29 in 0300 PM 06/22 USARMY-COE
1 WNW Freeport 0.29 in 0700 AM 06/22 COCORAHS
Macomb 0.29 in 0700 AM 06/22 COOP
Macomb 0.28 in 0720 AM 06/22 COCORAHS
Memphis 0.27 in 0600 AM 06/22 COOP
2 ENE Bolton 0.21 in 0309 PM 06/22 CWOP
2 ESE Scioto Mills 0.20 in 0313 PM 06/22 CWOP
Freeport 0.19 in 0230 PM 06/22 COOP
Freeport Arpt 0.19 in 0655 AM 06/22 AWOS
3 W Pleasant Grove 0.18 in 0306 PM 06/22 CWOP
Cedar Crk Near Oakland Mills 0.18 in 0230 PM 06/22 USGS
Dysart 3n 0.16 in 0215 PM 06/22 GOES
Bentley 0.12 in 0645 AM 06/22 COOP
2 ENE Argyle Lake State 0.12 in 0645 AM 06/22 COCORAHS
Keosauqua 0.12 in 0215 PM 06/22 COOP
Iowa Rvr Near Belle Plaine 0.10 in 0300 PM 06/22 USGS
Environment
 |
 |
 |
| Figure 1: 7AM SPC Outlook 6/22/2016 with storm reports |
Figure 2: 1130 AM SPC Outlook Update with storm reports |
Figure 3: SPC Day 1 Outlook (link to event wrap up) |
 |
 |
 |
| Figure 4: MSAS Sfc Temps |
Figure 5: MSMS Sfc Dewpoints |
Figure 6: MSAS 3-hr Pressure Rises/Falls |
 |
 |
 |

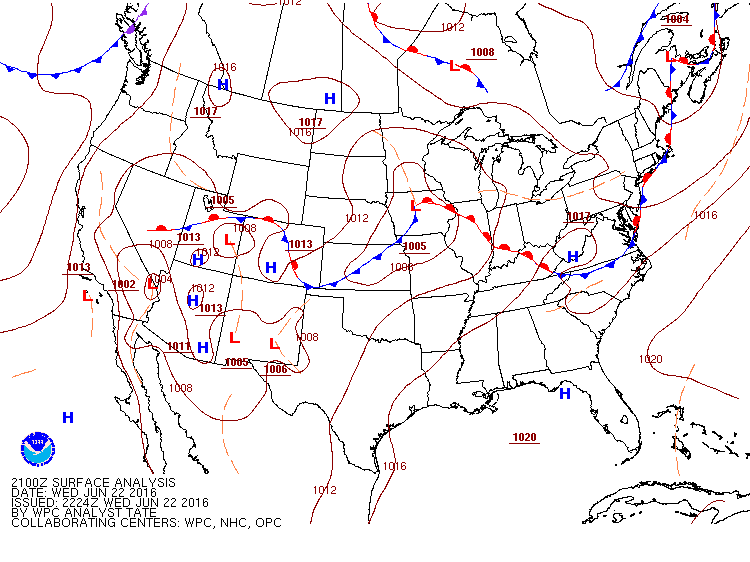

| Figure 7: 21z - WPC Sfc Fronts/Pressures |

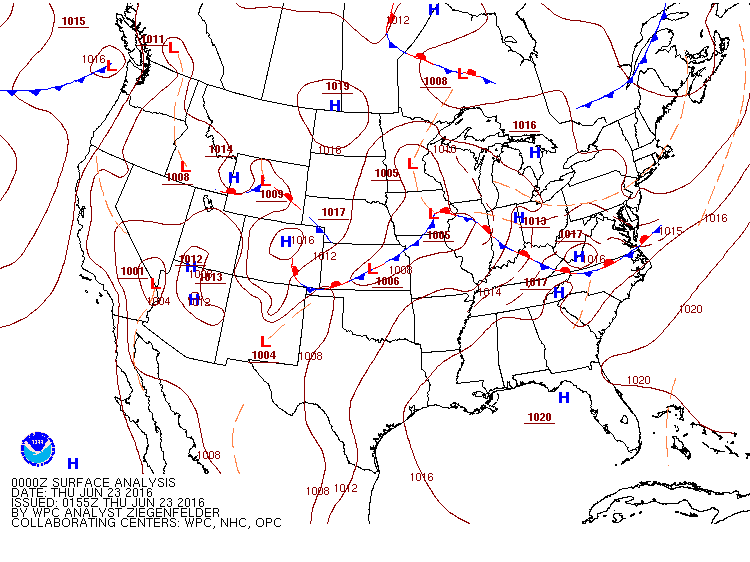

Figure 8: 00z - WPC Sfc Fronts/Pressures |

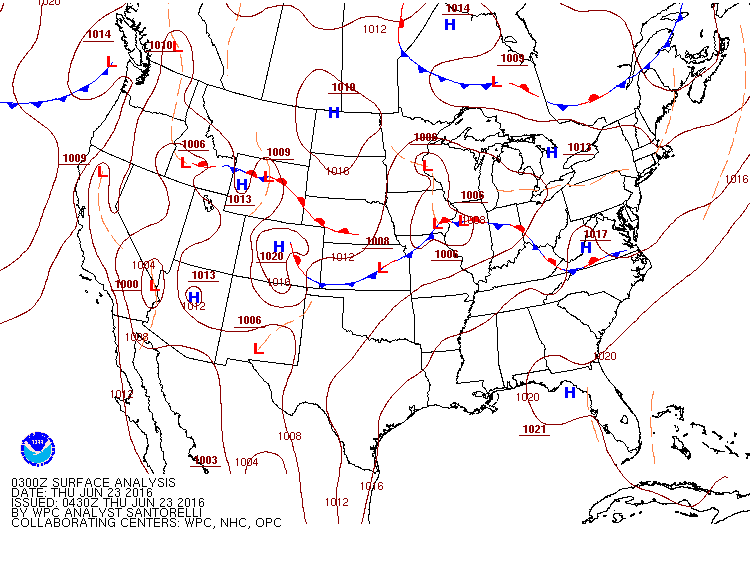

Figure 9: 03z - WPC Sfc Fronts/Pressures |
 |
