NWS Pittsburgh · Office History

From Fifth Avenue to Shafer Road

More than 150 years of weather observing and forecasting in Pittsburgh.

Photo: Jared Rackley
  • 1870First observations downtown
  • 11Office locations
  • 1966WSR-57 radar arrives on Shafer Road
  • 1980Office moves to Shafer Road

Milestones

How the Pittsburgh office grew from a downtown observing station into today's forecast office.

ObservationsUpper airRadarForecastingRiversOfficeOutreach
  1. 1870
    Observations

    Pittsburgh is included in the Signal Corps' original weather station network. First observations are taken on November 1 from a window shelter on Fifth Avenue downtown.

  2. 1891
    Office

    The Weather Bureau takes over on July 1, and moves the office to the federal courthouse the next year.

  3. 1931
    Observations

    An airport station is established in January at Bettis Airport.

  4. 1932
    Observations

    The airport station moves to the Allegheny County Airport.

  5. 1935
    Observations

    Official observations are transferred from the city office to the airport station.

  6. 1943
    Upper air

    Upper-air observations begin.

  7. 1944
    Forecasting

    A Flight Advisory Weather Service office is added.

  8. 1952
    Forecasting

    The airport station relocates to the Greater Pittsburgh Airport and begins forecast operations. A WSR-1 radar is later commissioned at the airport.

  9. 1962
    Rivers

    The Upper Ohio River Forecast Unit is established at the city office, covering the Ohio River and tributaries above Dam 13 (McMechen, WV).

  10. 1963
    Upper air

    Upper-air observations move to a separate facility near Coraopolis, on Shafer Road. The airport's WSR-1 radar is decommissioned on October 4.

  11. 1965
    Office

    The city office moves to the Federal Building at 1000 Liberty Avenue.

  12. 1966
    Radar

    A WSR-57 radar is commissioned on August 1 at the Shafer Road site, which operates as the radar and upper-air station alongside the downtown administrative office and the airport weather office.

  13. 1967
    Rivers

    The river forecast unit is upgraded to a full River Forecast Center, which remains operational until 1969.

  14. 1979
    Forecasting

    A new facility is built near the upper-air site to house forecast operations. Surface observations at the airport continue as a contract meteorological observatory. A mini-RFC is re-established in response to major floods (Hurricane Agnes in 1972 and the Johnstown Flood in 1977), operating until the late 1980s.

  15. 1979
    Outreach

    Fred Rogers visits the Shafer Road station for an episode of Mister Rogers' Neighborhood, seeing the radar and helping launch a weather balloon. The episode first aired May 22, 1980.

  16. 1980
    Office

    The downtown office and the Shafer Road radar and upper-air site are combined, and the forecast office makes its final move to 192 Shafer Road in Moon Township.

  17. 1994
    Radar

    The current KPBZ WSR-88D Doppler radar is installed at the Shafer Road office on August 4. It has been upgraded a number of times since.

  18. 2008
    Radar

    KPBZ begins collecting super-resolution data as part of a nationwide WSR-88D software upgrade, sharpening the detail in its lowest scans.

  19. 2011
    Radar

    KPBZ is upgraded to dual polarization in July, one of the first radars in the nation to get the technology. Dual-pol shows the size and shape of what the radar sees, helping tell rain from snow, hail, and debris.

Office on the Move

The city office changed addresses 10 times in downtown Pittsburgh before moving about 13 miles west to Moon Township. Select a location to see it on the map.

  1. 1
    First observations taken in downtown PittsburghExact spot on Fifth Avenue unknown. Approximate location.
    Nov 1, 1870 – Mar 15, 1871
  2. 2
    Placed at today's 53 Grant Street; street numbers may have changed since 1871. Approximate location.
    Mar 15, 1871 – Jun 1, 1871
  3. 3
    Penn Ave & 6th StApproximate location.
    Jun 1, 1871 – Jul 1, 1871
  4. 4
    5th Ave & Wood StSite of today's One PNC Plaza. Approximate location.
    Jul 1, 1871 – Oct 1, 1886
  5. 5
    95–97 5th AveStreet numbers have changed since the 1880s; placed on Fifth Avenue. Approximate location.
    Oct 1, 1886 – Jun 1, 1892
  6. 6
    Smithfield St, 3rd & 4th AveApproximate location.
    Jun 1, 1892 – Jun 24, 1904
  7. 7
    5th Ave & Wood StDemolished in 1997.
    Jun 24, 1904 – Mar 20, 1910
  8. 8
    Smithfield St, Oliver & 6th AveStill standing at 535 Smithfield Street.
    Mar 20, 1910 – Dec 15, 1934
  9. 9
    700 Grant StNow the Joseph F. Weis Jr. U.S. Courthouse.
    Dec 15, 1934 – Jan 27, 1965
  10. 10
    1000 Liberty AveNow the William S. Moorhead Federal Building.
    Jan 27, 1965 – 1980
  11. 11
    Moon Township
    1980 – Present

Building Shafer Road

The beginnings of the current NWS Pittsburgh office in the late 1960s, as told by former (now retired) employee Jerry Hill. Photos courtesy of Mr. Hill.

It was 1966 when I arrived in Pittsburgh. I was assigned to be the Supervising Radar Meteorologist for the new WSR-57 radar facility that was under construction in Pittsburgh. However, upon arrival I learned that the radar was to be at neither the city office nor the airport office but a couple of miles away from the airport on Shafer Road.

At that time the Pittsburgh office was split with the Weather Bureau Office, the WBO, located downtown in the Federal Office Building. The Weather Bureau Airport Station, the WBAS, was at the airport. The city office was just for administration and the MIC worked there. The airport had the observing program and also staffed the forecasters who made the local and district forecasts. For many years the airport station had also conducted the upper air sounding program.

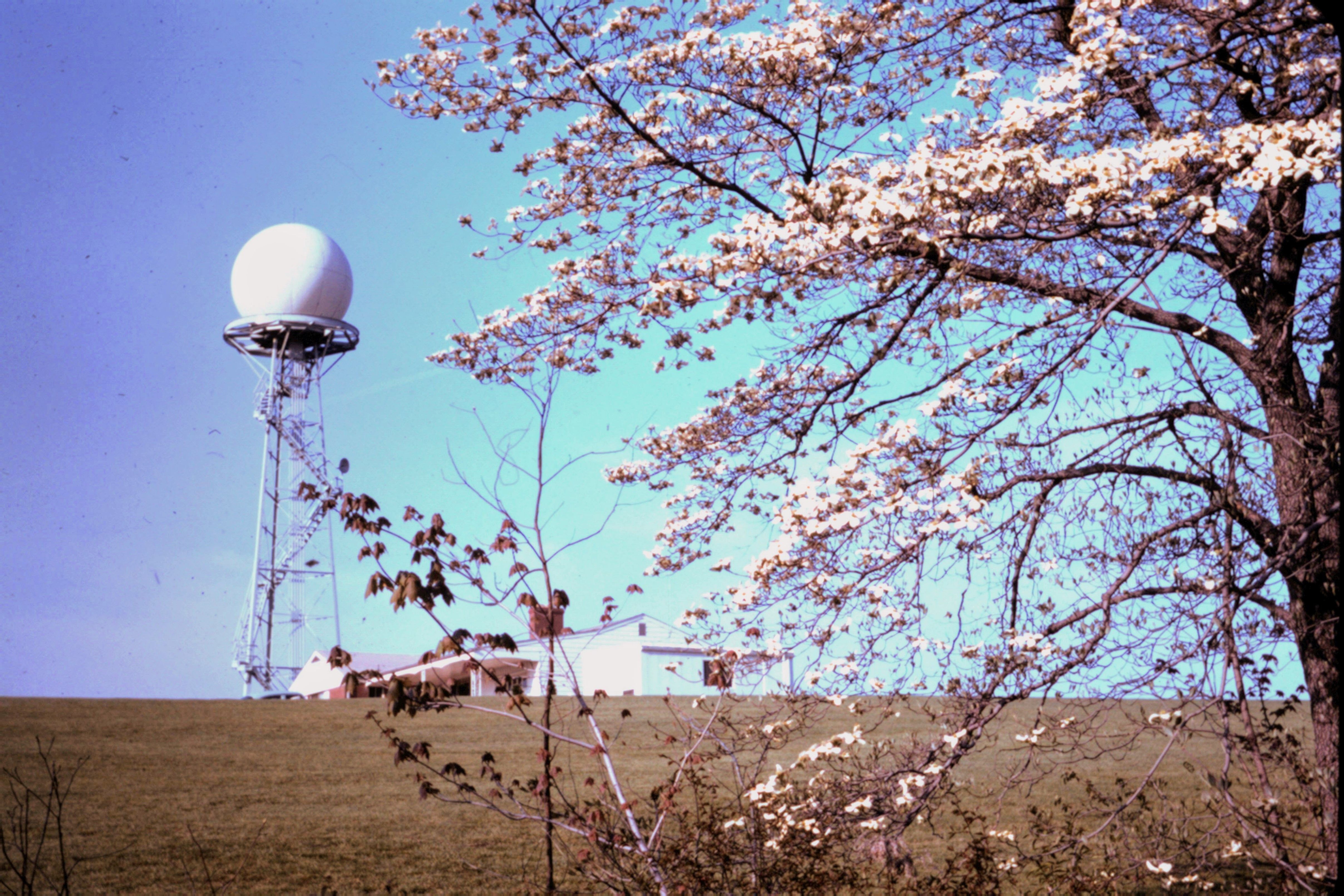

Dogwood trees in bloom at the edge of the property, with the radar tower in the distance
Part of the wooded area surrounding the mowed portion of the acreage was lined with dogwood trees that provided a backdrop of white blossoms every spring.

One of the electronic technicians who worked at the airport lived on Shafer Road and saw a new house being built next door to him. He had the idea that it would be a good location for the upper air station because the balloons could be inflated with hydrogen, instead of the more expensive helium, which the airport authorities required for safety reasons. The ET sent in an employee suggestion to the Weather Bureau and the agency soon bought the property. It consisted of a new three bedroom, 1½ bath house with an attached garage and an unfinished basement. There were several acres of land included that could form a buffer against the future encroachment of other buildings nearby.

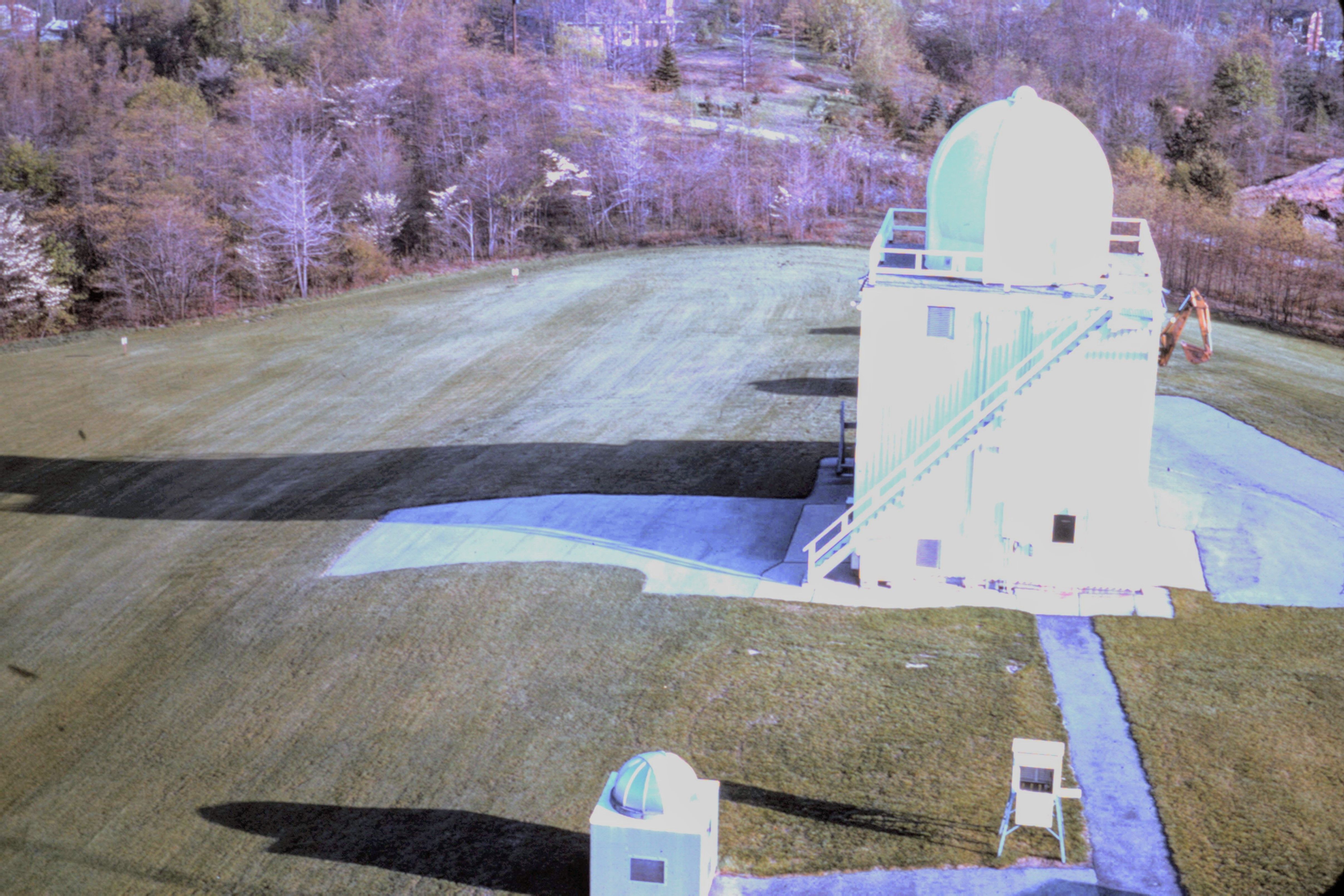

Elevated view of the radiosonde shelter and grounds at Shafer Road
The radiosonde shelter, where balloons were inflated with hydrogen.

The Weather Bureau moved into the facility and started the raob program using hydrogen for inflating the balloons. I recall someone telling me that the savings in the cost between hydrogen and helium paid for the property in three years.

After the Weather Bureau had installed the long-range radars along the U.S. seaboards, they started to place them in major cities and Pittsburgh's turn came in 1966. The upper air station was picked as the site. The basement of the house was finished out with the radar console and the other equipment, along with the radar transmitter.

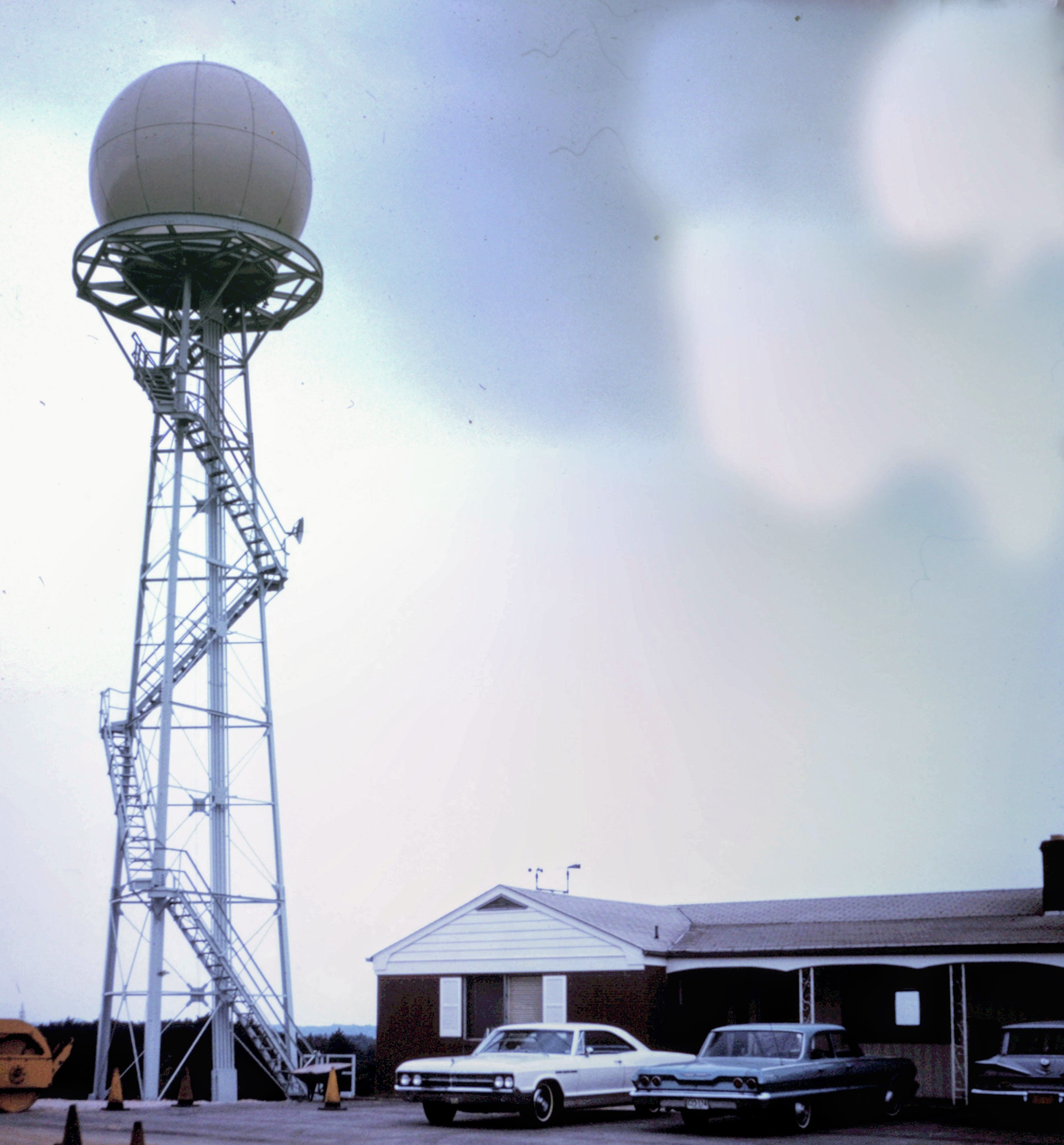

The WSR-57 radar tower next to the house, with cars parked out front
The radar tower beside the house, painted with a white dome and blue steelwork.

The tower for the radar was placed right next to the house, and it was painted with a white dome and blue steel work. In keeping with the residential nature of the neighborhood, the paint scheme was a nice alternative to the orange and white obstruction paint that the Weather Bureau normally had to use on the radar towers near most airports.

Inside the house, offices were built out for the electronic technicians, and all the communication equipment needed for a functioning weather office was added.

“The savings in the cost between hydrogen and helium paid for the property in three years.”

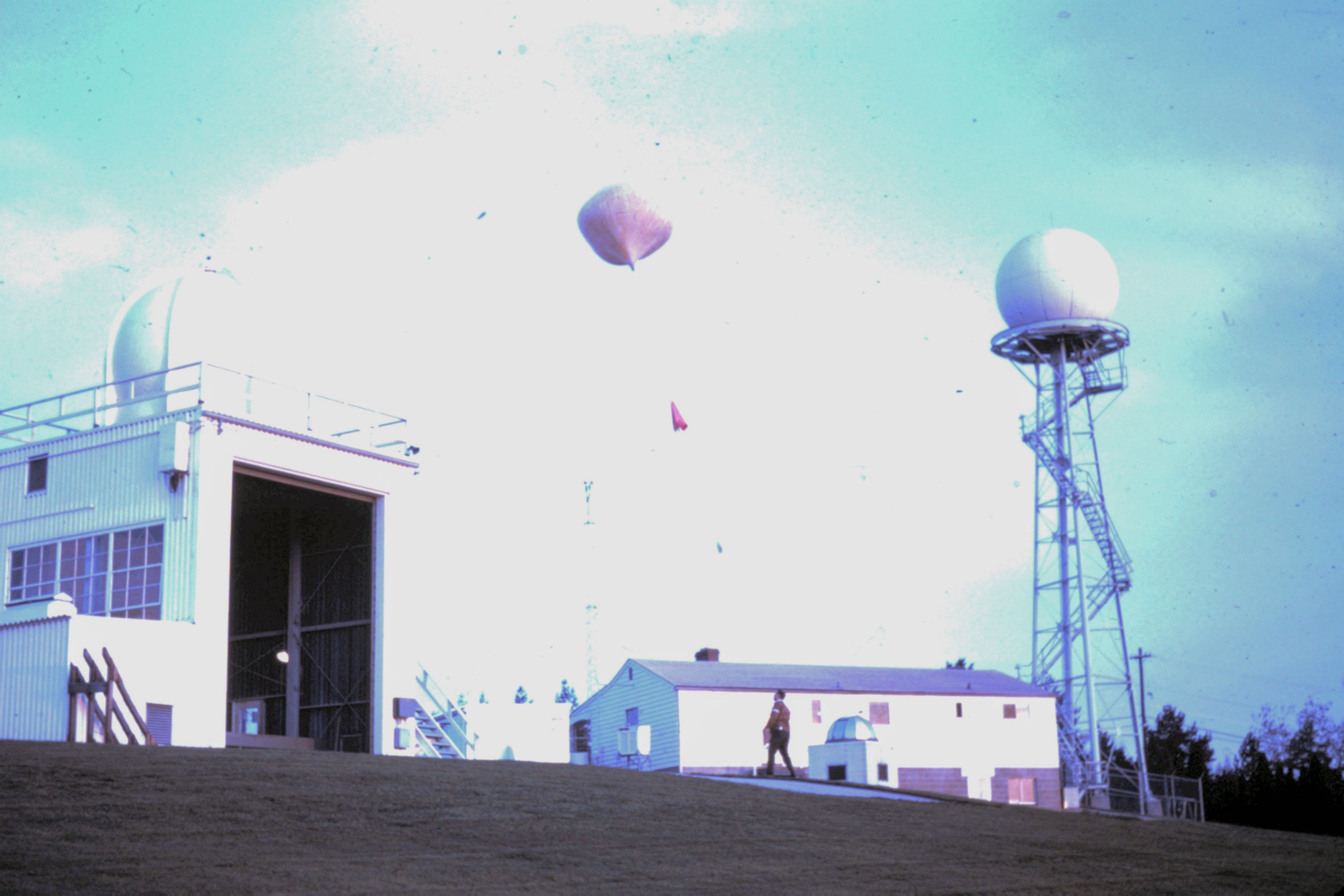

A weather balloon rising above the radar tower
A radiosonde balloon rising over the station.

When the upper air unit moved from the airport terminal building out to Shafer Road it was just considered a satellite of the WBAS. With the addition of the radar, we had 5 meteorologists, 7 meteorologist technicians, and 4 electronic technicians, so somebody in headquarters decided the facility needed a name. It couldn't be another WBO because one already existed in Pittsburgh so someone suggested it be called the Weather Bureau Meteorological Observatory, the WBMO. Soon a large sign arrived to place in the front yard identifying the facility as thus.

In the 1960s the Weather Bureau was forming what they called Weather Bureau Forecast Offices, WBFOs. The location for the WBFO was selected to be the office in the downtown federal building.

Original Equipment & Early Years

More original equipment from the early years of the Pittsburgh WBFO. Select a photo to enlarge it.

Photos in this section and in Building Shafer Road courtesy of Jerry Hill.

Three scenes from a television visit: inflating a weather balloon, watching the radar console, and carrying a radiosonde out for launch
Fred Rogers visits the station for an episode of Mister Rogers' Neighborhood, watching a radar demonstration and helping launch a weather balloon.
A neighborhood visit

Mister Rogers stops by

Fred Rogers, whose show was produced right here in Pittsburgh, visited the Shafer Road station in 1979. He watched a demonstration of the radar and helped launch a weather balloon for an episode of Mister Rogers' Neighborhood that first aired May 22, 1980.
